Product Name:

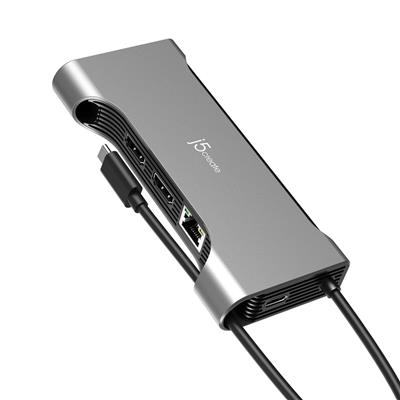

J5Create Flexible Ports USB-C Dual 4K60 HDMI Hub

Web Address:

en.j5create.com

Model Number:

JCD367-N

EAN:

4711704920001

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

• Aluminium
• ABS Plastic

Colour:

Space Grey

Hardware:

• Audio Supported: Yes
• Host Connector: 1 x USB-C Male (PD 3.0 100W)
• Ports:
• 2 x HDMI 4K at 60Hz
• 3 x USB-C 3.2 Gen 1 5Gbps
• 3 x USB Type-A 480 Mbps
• 1 x SD and microSD 3.0
• 1 x Gigabit Ethernet
• 1 x USB-C PD-in with PD 3.0 up to 100W
• Power Source: Bus-powered or self-powered
• Video Output: 1 x HDMI Female

Performance:

• Audio channel: 2.1 via HDMI
• Displays supported: 1
• Max data transfer rate: 5Gbps
• Max display resolution: 3840 x 2160 at 144 Hz / 2560 x 1440 at 144 Hz / 1920 x 1080 at 144 Hz

Power:

• Input current: Up to 5A
• Input voltage Up to 20V
• Output current Up to 4.25A
• Output voltage Up to 20V
• Power cignored= 400 mA
• Power delivery Up to 100W via USB-C

Cable Length:

200mm

Temperature:

-1 to 41°C

Humidity:

< 85% non-condensing

Product Width:

47mm

Product Length:

118mm

Product Height:

19mm

Product Weight:

167g

Package Width:

11cm

Package Length:

16cm

Package Height:

3.99cm

Gross Weight:

0.30Kg

Special Features:

This USB-C Flexible Ports - Pro 12-in-1delivers powerful display performance and versatile connectivity for both work and play. It supports dual 4K HDMI outputs up to 3840 x 2160 at 60 Hz enabling smooth multitasking across two displays. Gamers can enjoy ultra-smooth visuals with 1920 x 1080 at 144 Hz or 2560 x 1440 at 120 Hz refresh rates under Windows.

Package Contents:

• 1 x Flexible Ports USB-C Dual 4K60 HDMI Hub - Pro 12-in-1 (JCD367)
• 1 x Quick Installation Guide (QIG)

Keywords:

• Dock
• 4K
• HDMI
