Product Name:

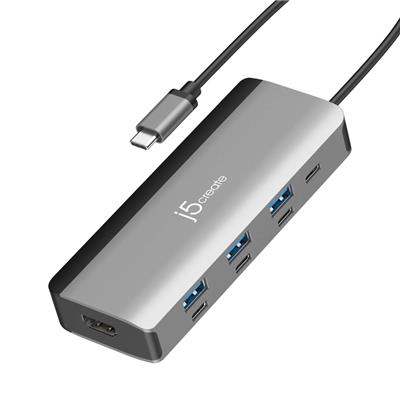

J5Create Flexible Ports USB-C 4K144 HDMI Hub

Web Address:

en.j5create.com

Model Number:

JCD362-N

EAN:

4712795089783

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

• Aluminium
• ABS Plastic

Colour:

Space Grey

Hardware:

• Audio supported: Yes
• Host connector: 1 x USB-C Male (PD 3.0 100W)
• Ports:
• 1 x HDMI 4K at 144 Hz
• 3 x USB-C 3.2 Gen 1 5Gbps
• 3 x USB Type-A 3.2 Gen 1 5Gbps
• 1 x USB-C PD-in with PD 3.0 up to 100W
• Power source: Bus-powered or self-powered
• Video output: 1x HDMI Female

Performance:

• Audio channel: 2.1 via HDMI
• Displays supported: 1
• Max data transfer rate: 5Gbps
• Max display resolution:
• 3840 x 2160 at 144 Hz
• 2560 x 1440 at 144 Hz
• 1920 x 1080 at 144 Hz

Power:

• Input current: Up to 5A
• Input voltage: Up to 20V
• Output current: Up to 4.25A
• Output voltage: Up to 20V
• Power consumption: = 400 mA
• Power delivery: Up to 100W via USB-C

Cable Length:

200mm

Temperature:

-1 to 41°C

Humidity:

< 85% non-condensing

Product Width:

118mm

Product Length:

47mm

Product Height:

19mm

Product Weight:

100g

Package Width:

10.5cm

Package Length:

17cm

Package Height:

2.5cm

Gross Weight:

0.14Kg
