Product Name:

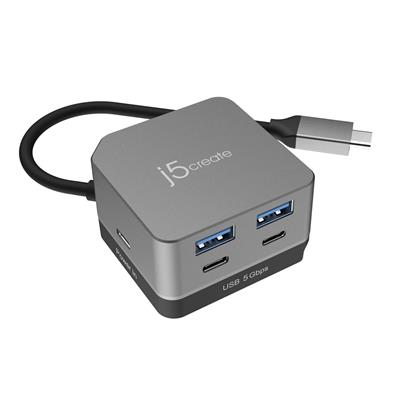

J5Create Flexible Ports USB-C 4K144 HDMI Hub

Web Address:

en.j5create.com

Model Number:

JCD361-N

EAN:

4712795089776

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

• Aluminium
• ABS Plastic

Colour:

Space Grey

Hardware:

• Audio supported: Yes
• Host connector: 1x USB-C Male (PD 3.0 95W)
• Ports:
• 1 x HDMI 4K @ 144Hz
• 2 x USB-C 3.2 Gen 1 5Gbps
• 2 x USB Type-A 3.2 Gen 1 5Gbps
• 1x USB-C PD-in with PD 3.0 up to 100W
• Power source: Bus-powered or self-powered
• Video output: 1x HDMI Female

Performance:

• Audio channel: 2.1 via HDMI
• Displays supported: 1
• Max data transfer rate: 5Gbps
• Max display refresh rate: 144Hz
• Max display resolution: 3840 x 2160

Power:

• Input current: Up to 5A
• Input voltage: Up to 20V
• Output current: Up to 4.75A
• Output voltage: Up to 20V
• Power consumption: = 400 mA
• Power delivery: Up to 100W via USB-C

Cable Length:

200mm

Temperature:

-1 to 41°C

Humidity:

< 85% non-condensing

Product Width:

53.2mm

Product Length:

53.2mm

Product Height:

31.15mm

Product Weight:

70.5g

Package Width:

6.3cm

Package Length:

6.3cm

Package Height:

33.1cm

Special Features:

• Supports HDMI resolutions up to 4K144Hz.
• USB 3.2 Gen 1 5Gbps x 4, transfer rates up to 5Gbps.
• USB-C charging port supports upstream charging and power delivery 3.0.
• Plug-and-play, no driver installation required.
• USB-C PD-in

Package Contents:

• 1 x Flexible Ports USB-C 4K144 HDMI Hub - Cube Plus 6 in 1
• 1x Quick Installation Guide (QIG)

Keywords:

• Dock
• USB-C
• 4K
