Product Name:

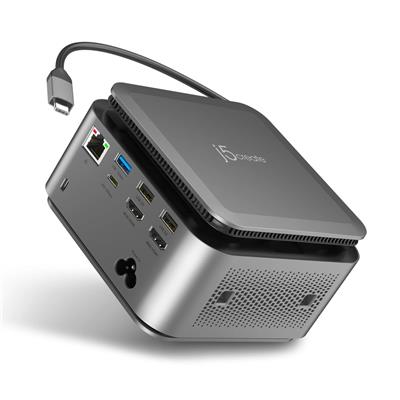

J5Create Dual 4K Powerbase Docking Station

Web Address:

en.j5create.com

Model Number:

JCDP4140-FN

EAN:

4711704920414

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Plastic

Colour:

Space Grey

Hardware:

• Audio Supported: Yes
• Host connector: 1 - USB-C Male (PD 3.0 100W, 20V/5A)
• Network interface: Yes
• Output: 27W port: 5V/3A; 9V/3A 18W port: 5V/3A; 9V/2A
• Ports:
• 1 x USB-C Host 10 Gbps/DP Alt Mode/PD 100W (20V/5A)
• 1 x USB-C pure charging PD 3.0 27W (9V/3A)
• 1 x USB-C 10 Gbps 4.5W
• 1 x USB-C 10 Gbps with PD 18W (9V/2A)
• 2 x USB Type-A 5 Gbps and 10 Gbps 4.5W
• 2 x USB Type-A 2.0 2.5W
• 1 x Combo 3.5 mm Audio Jack
• 1 x HDMI (USB display max resolution 4K@30Hz)
• 1 x HDMI (DP Alt max resolution 4K@60Hz)
• 1 x RJ45 Gigabit Ethernet
• 1 x SD/microSD 3.0
• Video output: 2 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI
• Compatible Networks: 10/100/1000 Mbps
• Displays Supported: 2
• Max data transfer rate: 10Gbps
• Max display refresh rate: 60Hz
• Max display resolution: 3840 x 2160

Power:

• Self-powered
• Input Current: AC power 0.83 - 2.2A
• Input Voltage: AC 100-240V
• Output Current: Up to 5A
• Output voltage: Up to 20V
• Power consumption: = 900 mA
• Power delivery: Up to 100W via USB-C

Cable Length:

69.5cm

Temperature:

-1 to 41°C

Humidity:

< 85% non-condensing

Package Width:

16.6cm

Package Length:

24.1cm

Package Height:

8.2cm

Net Weight:

0.82Kg

Gross Weight:

1.04Kg

Special Features:

Unify Your Tech: The 14-in-1 USB-C Power and Connectivity Hub

Package Contents:

• 1 x JCDP4140 Dual 4K Powerbase Docking Station with Cable Management
• Detachable 3 Pin Power Cord 100cm
• 1 x Quick Installation Guide (QIG)

Keywords:

• Docking
• 4K
• USB-C
