Product Name:

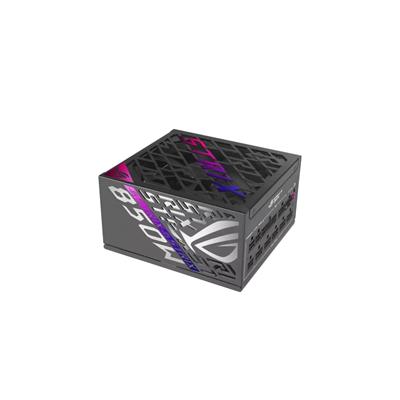

ASUS 850W ATX 12V v3.1 Fully Modular Power Supply - ROG STRIX 850W Platinum - 80 PLUS Platinum

Web Address:

www.asus.com

Model Number:

ROG STRIX 850W PLATINUM

EAN:

4711387594520

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

850W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

3

16-pin PCI-E:

1

SATA Connector(s):

6

Peripheral Connector(s):

3

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

>120,000 hrs at 25°C

Colour:

Black

Cable Type:

Fully Modular

Product Width:

160mm

Product Length:

150mm

Product Height:

86mm

Package Width:

20cm

Package Length:

32cm

Package Height:

10.8cm

Net Weight:

1.84Kg

Gross Weight:

2.94Kg

Special Features:

• GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
• "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
• Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• 0dB technology lets you enjoy light gaming in relative silence.
• ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
• PCIe 5.1 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.
• Lambda A Certification Certified low noise levels, below 25 dB.
• 80 PLUS & Cybenetics Platinum certified: ROG Strix Platinum leverages low-ESR capacitors and premium components for industry-leading power efficiency.

Package Contents:

• PSU
• UK Power Cord
• 1 x Motherboard Power Cable (610mm)
• 2 x CPU Cable (1000mm)
• 1 x PCI-E Gen 5.1 (16-pin-to-16-pin) Cable (750mm)
• 3 x PCI-E (8-pin-to-6+2pin) Cable (750mm)
• 2 x SATA 1-to-3 Cable (400+120+120mm)
• 1 x Peripheral 1-to-3 Cabel (400+150+150mm)
• 1 x ROG Strix DIY sticker
• User Manual
