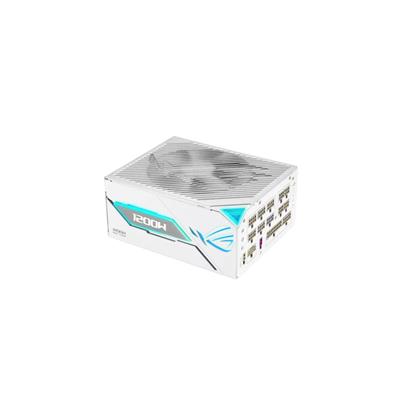

Product Name:

ASUS 1200W ATX 12V v3.1 Fully Modular White Power Supply - ROG THOR 1200W Platinum III - 80 PLUS Platinum

Web Address:

www.asus.com

Model Number:

ASUS ROG THOR 1200W PLATINUM III (WHITE)

EAN:

4711636125420

Package Type:

Retail

Warranty:

10 Years

Type:

ATX 12V v3.1

Maximum Power:

1200W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

4

16-pin PCI-E:

1

SATA Connector(s):

7

Peripheral Connector(s):

6

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

>120,000 hrs at 25°C

Colour:

White

Cable Type:

Fully Modular

Product Width:

150mm

Product Length:

200mm

Product Height:

86mm

Package Width:

24.1cm

Package Length:

37.9cm

Package Height:

15.9cm

Net Weight:

2.37Kg

Gross Weight:

5.21Kg

Special Features:

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminium enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• Lambda A++ Certification: Certified low noise levels, below 15 dB.
• 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

Package Contents:

• PSU
• UK Power Cord
• 1 x Motherboard Power Cable (610mm)
• 2 x CPU Cable (1000mm)
• 1 x PCI-E Gen 5.1 16-pin Cable (750mm)
• 4 x PCI-E Cable 1-to-1 (750mm)
• 1 x SATA Cable 1-to-4 (400+120+120+120mm)
• 1 x SATA Cable 1-to-3 (400+120+120mm)
• 2 x Peripheral 1-to-3 (400+150+150mm)
• 1 x Addressable RGB Cable (800mm)
• 1 x ROG sticker
• 6 x ROG cable tie
• 1 x Chassis Screws Package
• 12 x Cable Tie
• User Manual
