Product Name:

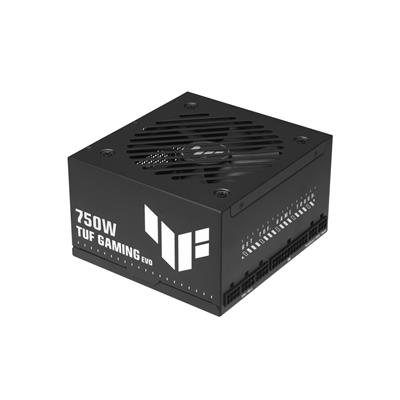

ASUS 750W ATX 12V v3.1 Fully Modular Power Supply - TUF Gaming 750W Bronze EVO - 80 PLUS Bronze

Web Address:

www.asus.com

Model Number:

TUF GAMING 750W BRONZE EVO

EAN:

4711636170406

Package Type:

Retail

Warranty:

6 Years

Type:

ATX 12V v3.1

Maximum Power:

750W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

3

SATA Connector(s):

4

Peripheral Connector(s):

2

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

M.T.B.F.:

>120,000 hrs at 40°C

Colour:

Black

Cable Type:

Fully Modular

Product Width:

140mm

Product Length:

150mm

Product Height:

86mm

Package Width:

18.2cm

Package Length:

28.2cm

Package Height:

12.7cm

Net Weight:

1.25Kg

Gross Weight:

2.12Kg

Special Features:

• Capacitors and chokes pass demanding tests to achieve military-grade certification.
• ATX 3.1 compatible ensuring enhanced voltage and current regulation for the latest hardware.
• Dual-ball fan bearings can last up to twice as long as sleeve bearings.
• A Protective PCB coating protects against moisture, dust, and extreme temperatures.
• 80 Plus Bronze certification due to low-ESR electrolytic capacitors and other premium components.
• Fully modular design with premium cables helps create a clean and tidy setup.
• Etched cables offer high flexibility for easy installation.

Package Contents:

• PSU
• UK Power Cord
• 1 x Motherboard Power Cable (500mm)
• 1 x CPU cable 1-to-2 (650mm+100mm)
• 1 x PCI-E 1-to-1 Cable (675mm)
• 1 x PCI-E 1-to-2 Cable (500+100mm)
• 2 x SATA and Peripheral 1-to-2+1 Cable (400+120+120mm)
• 1 x Chassis Screws Package
• User Manual
