Product Name:

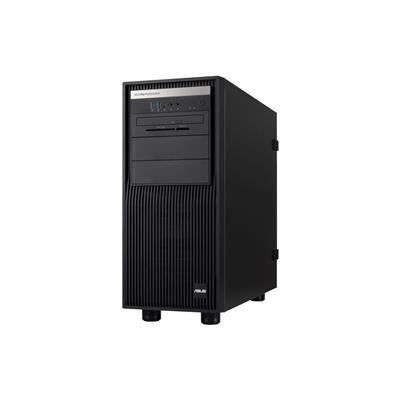

ASUS ExpertCenter Pro ET500A B8-B-750-1

Web Address:

www.asus.com

Model Number:

PRO ET500A B8-B-750-1

EAN:

4711636452670

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B850

CPU Interface:

1 x Socket AM5

CPU Support:

https://www.asus.com/displays-desktops/workstations/essential/expertcenter-pro-et500a-b8/helpdesk_knowledge?model2Name=ExpertCenter-Pro-ET500A-B8

Memory Total Slots:

4 (2-channel)

Memory Capacity:

Maximum up to 256GB UDIMM

Memory Type:

Dual Channel DDR5 5600 ECC/non-ECC UDIMM

Memory Size:

64GB, 32GB, 16GB, 8GB UDIMM

Total Expansion Slots:

2

Slot Location 1:

PCIe 5.0 x16 slot (supports x16 mode)

Slot Location 2:

PCIe 4.0 x16 slot (supports x4 mode)

Drive Bays Internal 3.5":

4 x internal 3.5"/2.5" Drive bays

S-ATA Controller:

4

M.2 Connector:

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

On-Board LAN:

2 x Intel 2.5Gb Ethernet

Front I/O:

• 1 x USB 20Gbps Type-C® port
• 2 x USB 5Gbps ports
• 1 x Headphone port
• 1 x Microphone port

Back Panel I/O Ports:

• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 10Gbps port (1 x Type-C)
• 1 x USB 10Gbps port (USB Type-C) supports DisplayPort video output
• 3 x USB 2.0 ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x VGA port
• 2 x Intel 2.5Gb Ethernet port
• 1 x Serial COM port
• 2 x Audio jacks
• 1 x BIOS FlashBack button

Switch/LED:

• Front:
• 1 x Power Switch/LED
• 1 x Reset Switch
• 1 x HDD Access LED
• Rear:
• 1x BIOS FlashBack Button/LED

Management Solution:

ASUS Control Center Express support

PSU:

750W Gold ATX Power Supply

Product Width:

190mm

Product Length:

423mm

Product Height:

435mm

Net Weight:

15.82Kg

Package Width:

42.3cm

Package Length:

43.5cm

Package Height:

19cm

Gross Weight:

18.51Kg

Special Features:

• Ready for 2D/3D rendering with support for one NVIDIA RTX PRO Blackwell series.
• Dual onboard 2.5GbE ethernet ports for faster high-density, high-bandwidth and low-latency.
• Dual M.2 for up to 128Gbps for better performance and data redundancy.
• Rich I/O options including front USB 20Gbps Type-C, USB 10Gbps Type C and USB 5Gbps for versatile connectivity.
• Supports up to four independent displays simultaneously via HDMI, DisplayPort, VGA and USB Type-C alt mode.
• A EPEAT Bronze-certified workstation for greener environment.
• Independent software vendor (ISV) certification for validated reliability and compatibility with key applications.
• ASUS Control Centre Express empowers real-time IT monitoring and management for enhanced data protection.

Package Contents:

Workstation
