Product Name:

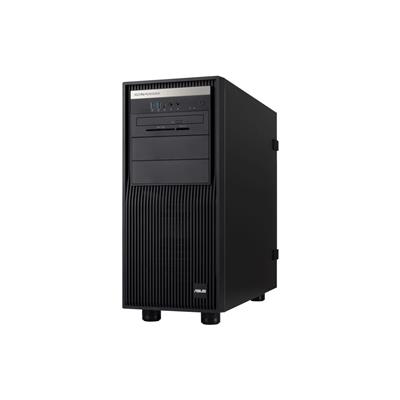

ASUS ExpertCenter Pro ET500I W8-B-750-1

Web Address:

www.asus.com

Model Number:

PRO ET500I W8-B-750-1

EAN:

4711636116336

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel W880

CPU Interface:

1 x Socket LGA1851

CPU Support:

https://www.asus.com/displays-desktops/workstations/essential/expertcenter-pro-et500i-w8/helpdesk_knowledge?model2Name=ExpertCenter-Pro-ET500I-W8

Memory Total Slots:

4 (2-channel)

Memory Capacity:

Maximum up to 256GB UDIMM

Memory Type:

Dual Channel DDR5 5600 ECC/non-ECC UDIMM

Memory Size:

64GB, 32GB, 16GB, 8GB UDIMM

Total Expansion Slots:

3

Slot Location 1:

PCIe x16 slots (Gen 5.0 x16/x8 link, FH, FL)

Slot Location 2:

PCIe x16 slots (Gen 5.0 x0/x8 link, FH, FL)

Slot Location 3:

PCIe x16 slots (Gen 4.0 x4 link)

Drive Bays Internal 3.5":

4 x internal 3.5"/2.5" Drive bays

S-ATA Controller:

4

SAS Controller:

2 x SlimSAS ports (1 x PCIe/SATA modes, 1x PCIe mode)

M.2 Connector:

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

On-Board LAN:

2 x Intel 2.5Gb Ethernet

Front I/O:

• 1 x USB 20Gbps Type-C port
• 2 x USB 5Gbps ports
• 1 x Headphone port
• 1 x Microphone port

Back Panel I/O Ports:

• 1 x Thunderbolt 4 port (1 x USB Type-C, 5V/3A and 8K@60Hz or 4K@120Hz) from CPU iTBT
• 1 x USB 20Gbps ports (1 x Type-C, 5V/3A) from CPU iTBT
• 6 x USB 10Gbps ports (6 x Type-A)
• 1 x HDMI port
• 2 x Intel 2.5Gb Ethernet port
• 1 x Serial COM port
• 2 x Audio jacks with SPDIF OUT
• 1 x BIOS FlashBack button

Switch/LED:

• Front:
• 1 x Power Switch/LED
• 1 x Reset Switch
• 1 x HDD Access LED
• Rear:
• 1x BIOS FlashBackTM Button
• Internal:
• 1 x FlexKey button
• 1 x Start button

Management Solution:

• ASUS Control Center Express support
• Intel v Pro support

PSU:

750W Gold ATX Power Supply

Product Width:

190mm

Product Length:

423mm

Product Height:

435mm

Net Weight:

15.82Kg

Package Width:

42.3cm

Package Length:

43.5cm

Package Height:

19cm

Gross Weight:

18.51Kg

Special Features:

• Ready for 2D/3D rendering and AI workloads with support for one NVIDIA® RTX™ professional GPU.
• Dual onboard 2.5GbE ethernet ports for faster high-density, high-bandwidth and low-latency.
• Triple M.2 for up to 128Gbps for better performance and data redundancy.
• Two SlimSAS ports, ready for industrial-grade NVMe storage devices.
• Rich I/O options including Thunderbolt 4, USB 20Gbps Type-C, USB 10Gbps Type A and USB 5Gbps for versatile connectivity.
• A EPEAT Bronze-certified workstation for greener environment.
• Independent software vendor (ISV) certification for validated reliability and compatibility with key applications.
• ASUS Control Centre Express empowers real-time IT monitoring and management for enhanced data protection.

Package Contents:

Workstation

Keywords:

Workstation
