Product Name:

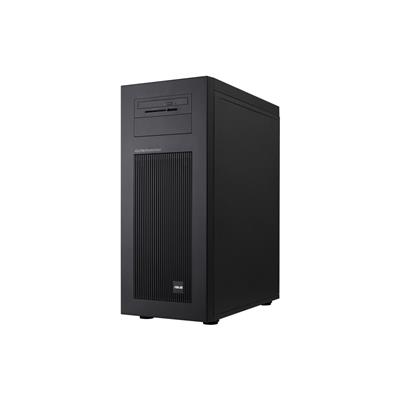

ASUS ExpertCenter Pro ET700I W7-B-1300-3

Web Address:

www.asus.com

Model Number:

PRO ET700I W7-B-1300-3

EAN:

4711387746394

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel W790

CPU Interface:

1 x Socket LGA4677

CPU Support:

https://www.asus.com/displays-desktops/workstations/advanced/expertcenter-pro-et700i-w7/helpdesk_cpu?model2Name=ExpertCenter-Pro-ET700I-W7

Memory Total Slots:

8 (4-channel)

Memory Capacity:

Maximum up to 1024GB RDIMM

Memory Type:

Quad Channel DDR5 4800/4400 MHz, ECC RDIMM

Memory Size:

128GB, 64GB, 32GB, 16GB RDIMM

Slot Type:

5

Slot Location 1:

PCIe x16 slot (Gen 5.0 x16 link)

Slot Location 2:

PCIe x16 slot (Gen 5.0 x16 link)

Slot Location 3:

PCIe x16 slot (Gen 5.0 x16 link)

Slot Location 4:

PCIe x4 slot (Gen 4.0 x4 link)

Slot Location 5:

PCIe x16 slots (Gen 5.0 x16 link)

Drive Bays External 5.25":

1

Drive Bays Internal 3.5":

3

Drive Bays Internal 2.5":

2

S-ATA Controller:

4 x SATA3 6Gb/s

SAS Controller:

• SlimSAS_1 slot supports PCIe 3.0 x4 mode NVMe device
• SlimSAS_2 slot supports PCIe 4.0 x4 & SATA mode device

M.2 Connector:

• 1 x M.2_1 socket3, up to 22110 type (PCIe Gen4 x4 link), from PCH
• 1 x M.2_2 socket3, up to 2280 type (PCIe Gen4 x4 link), from PCH

On-Board LAN:

2 x Intel I226-LM 2.5GbE LAN

Front I/O:

• 1 x USB 20 Gbps Type-C port
• 2 x USB 5 Gbps ports
• 2 x USB 2.0 port
• 1 x Headphone port
• 1 x Microphone port

Back Panel I/O Ports:

• 2 x USB 10 Gbps ports (1 port at Type A, 1 port at Type C®)
• 2 x USB 5 Gbps ports
• 4 x USB 2.0 ports
• 2 x LAN ports (RJ45)
• 1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)
• 1 x BIOS FlashBack button

Switch/LED:

• Front:
• 1 x Power Switch/LED
• 1 x Reset Switch
• 1 x HDD Access LED
• 1 x Fan Speed Switch ( Full speed/by fan profile setting)
• Back:
• 1 x BIOS FlashBack

Management Solution:

• ASUS Control Center Express support
• Intel vPro support

PSU:

1300W 80PLUS Platinum Single Power Supply

Product Width:

230mm

Product Length:

535mm

Product Height:

448mm

Net Weight:

14.28Kg

Package Width:

44.8cm

Package Length:

53.5cm

Package Height:

23cm

Gross Weight:

21.38Kg

Special Features:

• Intel Xeon W-3500/W-3400/W-2500/W-2400 series, Intel W790 chipset and DDR5 ECC memory for professional performance and stability.
• Ready for 2D/3D rendering and AI workloads with support for up to two NVIDIA RTX professional GPUs.
• Dual onboard 2.5Gb Ethernet ports for fast, high-bandwidth, low-latency throughput.
• Dual M.2 for up to 64Gbps for better performance and data redundancy.
• EPEAT Bronze-certified workstation for greener environment.
• Ultra-fast connectivity with USB 20Gbps Type-C, USB 10Gbps Type A and C and USB 5Gbps ports.
• ASUS Control Centre Express: Real-time IT monitoring and management software for enhanced data protection.
• Independent software vendor (ISV) certification for validated reliability and compatibility with key applications.

Package Contents:

Workstation
