Product Name:

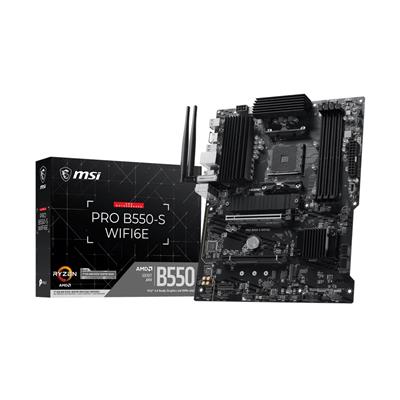

MSI PRO B550-S WIFI6E (Socket AM4/B550/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

PRO B550-S WIFI6E

EAN:

4711377466530

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/PRO-B550-S-WIFI6E/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4866+ (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 3.0 x4

On-Board LAN:

Realtek RTL8111H 1Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Dual-band 1T1R mode
• Supports MU-MIMO RX
• Supports 2.4GHz/ 5GHz/ 6GHz frequency band
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

26.8cm

Package Length:

34.2cm

Package Height:

7cm

Net Weight:

1.01Kg

Gross Weight:

1.20Kg

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x M.2 Screw / Standoff Sets
• SATA Cable
• Wi-Fi Antenna
• IO Shield
