Product Name:

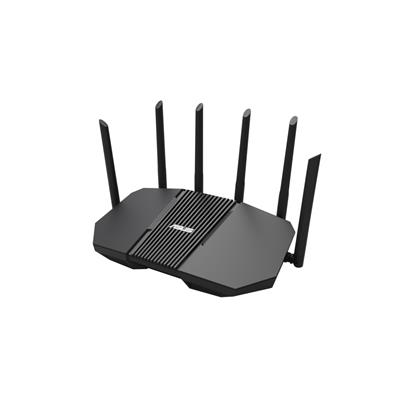

ASUS RT-BE90U Wireless Router - WiFi 7 - BE9400

Web Address:

www.asus.com

Model Number:

RT-BE90U

EAN:

4711636276719

Package Type:

Retail

Warranty:

3 Years

Device Type:

Wireless Router

Ports:

• 1 x 2.5 Gbps for WAN
• 3 x 2.5 Gbps for LAN
• USB 3.2 Gen1 x1

Standards:

• IPv6
• IPv4
• IEEE 802.11be
• IEEE 802.11ax
• IEEE 802.11ax
• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a

Transfer Rate:

• WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
• WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
• WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Network Architecture Types:

Infrastructure

Processor:

1.5GHz quad-core processor

Memory:

• 256MB Flash
• 1GB RAM

Antenna Type:

6 x External

Frequency Range:

• 6GHz
• 5GHz
• 2.4GHz

Range:

Up to 2500 sq. ft.

Security:

• AiProtection
• VPN
• WPA/WPA2/WPA3 Personal
• WPA/WPA2/WPA3 Enterprise
• Open System and OWE
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan
• Firewall:
• Maximum Firewall Keyword Filter: 64
• Maximum Firewall Network Service Filter: 32
• Maximum Firewall URL Filter : 64

Management:

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update

VPN Support:

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark
• Support Nord VPN

LED indicators:

• 1 x WAN (Internet)
• 1 x 6GHz
• 1 x 5GHz
• 1 x 2.4GHz
• 1 x Power

Button:

• WPS
• Reset
• Power

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output: 12V with max. 2.5A current

Product Width:

320mm

Product Length:

180mm

Product Height:

191mm

Product Weight:

761g

Package Width:

23.6cm

Package Length:

44.2cm

Package Height:

8.2cm

Net Weight:

0.85Kg

Gross Weight:

1.45Kg

Special Features:

• Ultrafast WiFi 7 - WiFi 7 (802.11be) tri-band extendable router boosts speeds up to 9400 Mbps, with 320MHz and 4096-QAM increasing a single frequency band’s transmission speed by 2.4 times.
• Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity - Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers.
• Quad 2.5G Ports - Traffic via 2.5G ports has top priority, supported by flexible WAN/LAN port configurations to maximize wired connectivity.
• Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
• Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable whole home seamless roaming with rich, advanced features.
• Commercial-Grade Network Security - Network security with commercial-grade AiProtection, plus a one-tap security scan and Safe Browsing.
• 4G LTE/5G mobile tethering - Supports 4G LTE/5G mobile tethering for always-on internet.

Package Contents:

• Router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card
