Product Name:

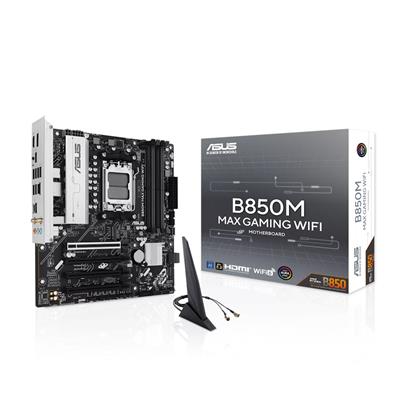

ASUS B850M MAX GAMING WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

B850M MAX GAMING WIFI

EAN:

4711636062343

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/others/b850m-max-gaming-wifi/helpdesk_knowledge?model2Name=B850M-MAX-GAMING-WIFI

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

3

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x2

LAN Speed:

• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band

Bluetooth:

v5.4

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

5

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

27.5cm

Package Height:

6.75cm

Net Weight:

0.92Kg

Gross Weight:

1.21Kg

Special Features:

B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antenna
• 2 x Screw packages for M.2 SSD
• 1 x Quick start guide
