Product Name:

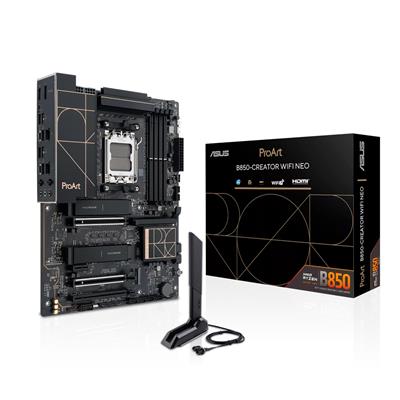

ASUS ProArt B850-CREATOR WIFI NEO (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PROART B850-CREATOR WIFI NEO

EAN:

4711636504447

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 64MB (512Mb) Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8400+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

2

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

2 x Realtek 5Gb Ethernet

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth

Bluetooth:

Yes

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

2 x Realtek 5Gb Ethernet ports

Back Audio Jack(s):

3

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 headers
• 1 x Thermal Sensor header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

26cm

Package Length:

28cm

Package Height:

7cm

Net Weight:

1.33Kg

Gross Weight:

2.21Kg

Special Features:

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, as well as AMD EPYC 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe 5.0 expansion, and ultrafast connectivity - including dual 5G Ethernet and WiFi 7 - it provides a reliable foundation for demanding creative workloads.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x M.2 Q-Slide package (2IN1)
• 1 x Rubber package for M.2 (2IN1)
• 1 x Screw for M.2 Q-Latch(1IN1)
• 1 x ProArt accessory bag
• 1 x ACC Express activation key card
• 1 x Quick start guide
