Product Name:

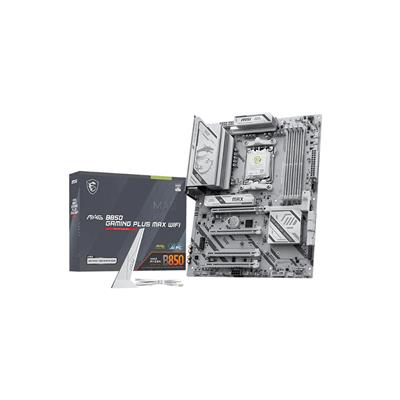

MSI MAG B850 GAMING PLUS MAX WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

MAG B850 GAMING PLUS MAX WIFI

EAN:

4711377410465

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MAG-B850-GAMING-PLUS-MAX-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x2

LAN Speed:

Realtek 8126 5G LAN

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
• Supports 802.11 a/b/g/n/ac/ax/be

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC897

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

2

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x EZ Conn-header
• 4 x EZ Debug LED
• 1 x EZ Memory Detection LED
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector
• 2 x Direct OC Jumper

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34cm

Package Height:

7cm

Net Weight:

1.26Kg

Gross Weight:

1.73Kg

Package Contents:

• Motherboard
• Quick Installation Guide
• 1 X SATA Cables
• EZ M.2 Clip II Remover
• EZ M.2 Clip II
• Cable Sticker
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable
