Product Name:

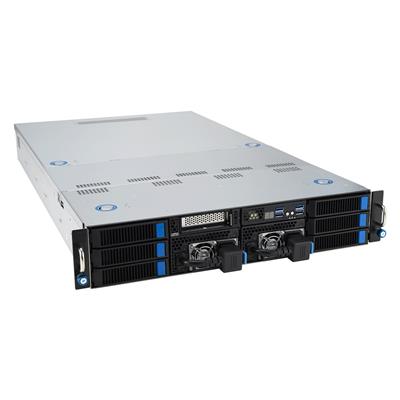

ASUS ESC4000A-E12-SKU1 Rackmount Server (1 x Socket SP5/DDR4/S-ATA/600/2U)

Web Address:

servers.asus.com

Model Number:

ESC4000A-E12-SKU1/1G/2600W(1+1)

EAN:

4711387030370

Package Type:

Retail

Warranty:

5 Years

CPU Interface:

1 x Socket SP5 (LGA 6096)

CPU Support:

http://servers.asus.com/products/Servers/GPU-Servers/ESC4000A-E12#Resources

Memory Total Slots:

12 (12-channel)

Memory Capacity:

Maximum up to 3TB RDIMM

Memory Type:

DDR5 4800/4400 RDIMM/RDIMM 3DS

Memory Size:

• 64GB, 32GB, 16GB RDIMM
• 256GB, 128GB 3DS RDIMM

Slot Type:

• Rear: 4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
• 1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
• 1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module
• 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)
• Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1

On-Board LAN:

• 2 x GbE LAN ports (Intel I350 Controller)
• 1 x Management Port

Front I/O:

• 1 x Q-code/port-80 LED
• 4 x USB 3.2 Gen1 ports

Back Panel I/O Ports:

• 2 x USB 3.2 Gen1 ports
• 2 x Gigabit LAN ports
• 1 x MAnagement port
• 1 x VGA port

Switch/LED:

• Front:
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED
• 1 x Q-Code/Port 80 LED
• 2 x LAN LED
• Rear:
• 1 x Power Button/LED
• 1 x Location LED
• 1 x Message LED

Management Solution:

• ASUS Control Centre
• ASUS ASMB11-iKVM (on-board)

PSU:

1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply

Product Width:

439.5mm

Product Length:

800mm

Product Height:

88.9mm

Net Weight:

24.00Kg

Package Width:

60cm

Package Length:

90cm

Package Height:

19cm

Gross Weight:

34.8Kg

Special Features:

• Powerful performance: Powered by AMD EPYC 9004/9005 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket.
• AI and HPC workloads ready: Up to four dual-slot active or passive GPUs, NVIDIA NVLink bridge, and NVIDIA Bluefield DPU support to enable performance scaling.
• Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to two 2600W Titanium redundant power supplies for uninterrupted operation.
• Comprehensive cooling solutions: Designed for both liquid cooling and enhanced air cooling based on CPU TDP for versatile workloads.
• Scale-up storage and expansion design: A total of six bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and eight PCIe 5.0 slots for higher bandwidth and system upgrade.
• Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity.
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Centre IT management software and hardware-level Root-of-Trust solution.

Package Contents:

ESC4000A-E12 1-Socket 2U Accelerator Server
