Product Name:

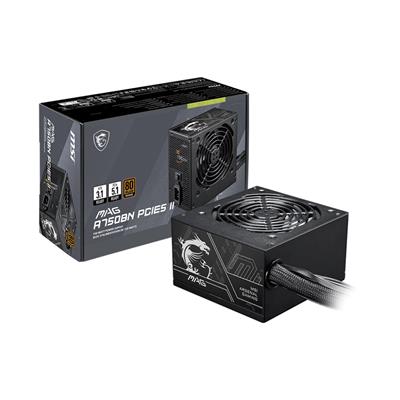

MSI 750W ATX Standard Power Supply - MAG A750BN PCIE5 II - (Active PFC/80 PLUS Bronze)

Web Address:

uk.msi.com

Model Number:

MAG A750BN PCIE5 II

EAN:

4711377364263

Package Type:

Retail

Warranty:

5 Years

Type:

ATX 12V v3.1

Maximum Power:

750W

24-pin Main:

1

4+4-pin ATX/EPS:

1

8-pin EPS:

1

6+2-pin PCI-E:

3

16-pin PCI-E:

1

SATA Connector(s):

3

Peripheral Connector(s):

2

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Colour:

Black

Cable Type:

Standard

Cooling System:

1 x 120mm Fan (Hydrualic Bearing)

Product Width:

150mm

Product Length:

140mm

Product Height:

86mm

Package Width:

20.6cm

Package Length:

29cm

Package Height:

12.6cm

Net Weight:

2.01Kg

Gross Weight:

2.40Kg

Special Features:

• Dual-colour 12V-2x6 Cable.
• ATX 3.1 Ready.
• PCIe 5.1 Ready (450W).
• 80 PLUS Bronze.
• 120mm Fan.
• DC to DC power Design.
• Active PFC Design.
• Industrial level protection with OVP, OCP, SCP, OPP, UVP.

Package Contents:

• Power Supply Units
• UK Power Lead

Keywords:

• Power Supply Units
• PSU
• ATX 3.1
• PCIe 5.1
• OVP
• OCP
• SCP
• OPP
• UVP
