Product Name:

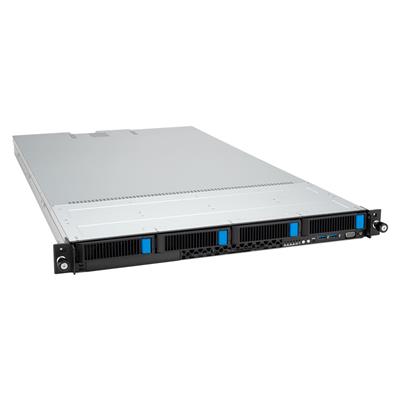

ASUS RS501A-E12-RS4 Rackmount 1U Server (Socket SP5/DDR5)

Web Address:

www.asus.com

Model Number:

RS501A-E12-RS4/1G/1600W/OCP

EAN:

4711387805923

UPC:

197105806016

Package Type:

Retail

Warranty:

3 Years

CPU Interface:

1 x Socket SP5

CPU Support:

https://servers.asus.com/products/Servers/Rack-Servers/RS501A-E12-RS4/#Resources

Memory Total Slots:

24

Memory Capacity:

3072GB

Memory Type:

• with AMD EPYC 9005 series processors
• DDR5 6400/5600 RDIMM/3DS RDIMM
• with AMD EPYC 9004 series processors
• DDR5 4800 RDIMM/ 3DS RDIMM

Slot Type:

• 1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
• 1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
• 1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
• 1 x OCP3.0 socket (Gen5 x16 link)

Drive Bays External 3.5":

4 x 3.5"/2.5” Hot-swap Storage Bays

M.2 Connector:

4 x NVMe/SATA/SAS

On-Board LAN:

• 1 x Dual Port Intel I350-AM2 GbE LAN Controller
• 1 x Management Port

Front I/O:

• 2 x USB 3.2 Gen1 ports
• 1 x VGA port

Back Panel I/O Ports:

• 2 x USB 3.2 Gen1 ports
• 1 x VGA port
• 1 x Management port
• 2 x 1GbE LAN ports

Switch/LED:

• Front:
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED
• 1 x HDD LED
• 4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
• Rear:
• 1 x Port80 LED (Q-Code)
• 1 x Power Button/LED
• 1 x Location Button/LED
• 1 x Message LED

Monitoring:

• ASUS Control Center
• ASUS ASMB11-iKVM (on-board)

Environment:

• Operating temperature: 10°C – 35°C
• Non operating temperature: -40°C – 70°C
• Non operating humidity: 20% – 90% (Non condensing)

PSU:

• 1+1 Redundant 1600W 80 PLUS Titanium
• Power Supply

Form Factor:

1U

Product Width:

449mm

Product Length:

842.5mm

Product Height:

43.85mm

Net Weight:

13.15Kg

Package Width:

58.50cm

Package Length:

113.80cm

Package Height:

13.15cm

Gross Weight:

18.15Kg

Special Features:

• Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts.
• Scale-up storage and expansion design: Up to four drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrades.
• Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity.
• Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP.
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Centre IT management software and hardware-level Root-of-Trust solution.
• Read for AI and HPC workloads: Up to two single-slot GPUs.

Package Contents:

1U Rackmount Server
