Product Name:

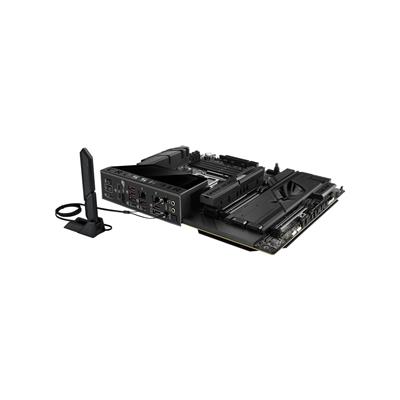

ASUS ROG CROSSHAIR X870E DARK HERO (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR X870E DARK HERO

EAN:

4711636398671

Package Type:

Retail

Warranty:

5 Years

BIOS:

• 64 MB (512Mb)
• Flash ROM, UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-dark-hero/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8200+ (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 10Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB 10Gbps Port(s) Type-A:

6

Back USB 10Gbps Port(s) Type-C:

3

Back USB 40Gbps Port(s) Type-C:

2

Back HDMI Port(s):

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen2 headers
• 1 x Thermal Sensor header

Internal Button(s):

• 1 x FlexKey
• 1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

30cm

Package Length:

36cm

Package Height:

11cm

Net Weight:

3.20Kg

Gross Weight:

4.40Kg

Special Features:

Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4 ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.

Package Contents:

• Motherboard
• 4 x SATA 6Gb/s cables
• 1 x DDR5 fan holder
• 1 x ROG assistant fan (60mm)
• 1 x Screw package for cooling kit
• 1 x Thermal pad for M.2 22110
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x M.2 Q-Latch package
• 3 x M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• 1 x ROG stickers
• 1 x ROG VIP card
• 1 x ROG Bottle Opener
• 1 x Quick start guide
