Product Name:

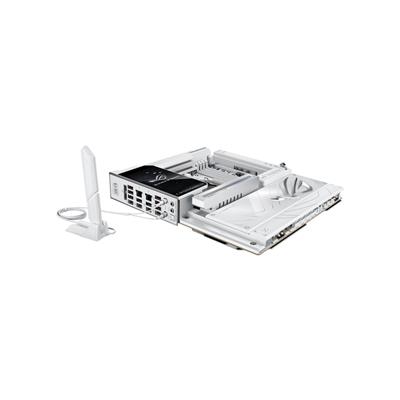

ASUS ROG CROSSHAIR X870E GLACIAL (Socket AM5/X870E/DDR5/S-ATA 6GB/s/Extended ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR X870E GLACIAL

EAN:

4711636392051

Package Type:

Retail

Warranty:

5 Years

BIOS:

• 2 x 512 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8600+ (O.C.)

Max. Memory Support:

256GB

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 4 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 5.0 x4

LAN Speed:

• 2 x Realtek 10Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

On-Board Video:

Processor with integrated graphics is required

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

8

Back USB 10Gbps Port(s) Type-C:

4

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module2

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

1

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
• 2 x Addressable Gen 2 header
• 1 x Alteration PCIe mode switch
• 12 x ProbeIt Measurement Points
• 1 x Thermal Sensor header

Internal Button(s):

• 2 x BCLK
• 1 x BIOS Switch
• 1 x FlexKey
• 1 x ReTry
• 1 x Safe Boot
• 1 x Start

Form Factor:

Extended ATX

Product Width:

277mm

Product Length:

305mm

Package Width:

32cm

Package Length:

38cm

Package Height:

12cm

Net Weight:

5.10Kg

Gross Weight:

6.60Kg

Special Features:

The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4 ports, and two USB 20Gbps Type-C front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.

Package Contents:

• Motherboard
• 1 x 1-to-4 ARGB splitter cable
• 1 x 1-to-2 ARGB splitter cable
• 2 x 1-to-3 fan splitter cable
• 2 x ROG weave SATA 6G cable packages
• 1 x ROG Hyper M.2 with heatsink
• 1 x M.2 pad package for ROG Q-DIMM.2
• 2 x Thermal pad for ROG Hyper M.2 Card
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 pad package for ROG Q-DIMM.2
• 2 x Thermal pad for ROG Q-DIMM.2
• 1 x Thermal pad for M.2 22110
• 1 x ROG Memory Q-Fan
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x ROG logo plate sticker
• 1 x ROG stickers
• 1 x ROG VIP card
• 1 x M.2 Q-Slide package
• 7 x M.2 backplate rubber packages
• 1 x ROG Bottle Opener
• 1 x Quick start guide
