Product Name:

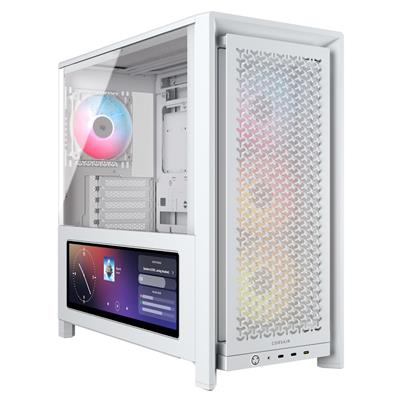

Corsair Frame 4000D LCD RS ARGB Mid Tower Case - White

Web Address:

www.corsair.com

Model Number:

CC-9011327-WW

UPC:

840440408031

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

White

Material Chassis:

Steel

Side Panel:

• Tempered Glass
• LCD Panel

Front USB 3.1 Port(s) Type C:

2

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

7

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

1

Drive Bays Internal 2.5":

2

Pre-installed Fan(s) Front:

3 x RS120 (ARGB Fans)

Pre-installed Fan(s) Rear:

1 x RS120 (ARGB Fans)

Radiator Support:

• Front: 360mm, 280mm, 240mm
• Top: 360mm, 280mm, 240mm
• Side: 360mm, 280mm, 240mm
• Bottom: None
• PSU Shroud: None
• Rear: 120mm, 140m

Fan Support:

• Front: 3 x 120mm, 2 x 140mm, 2 x 200mm
• Top: 3 x 120mm, 2 x 140mm
• Side: 3 x 120mm, 2 x 140mm
• PSU Shroud: 2 x 120mm
• Rear: 1 x 120mm, 1 x 140mm

Clearances:

• Maximum PSU Length: 220mm
• Maximum CPU Cooler Height: 170mm
• Maximum GPU Length: 430mm

Dust Filter(s):

• Front
• Bottom
• Side

Product Width:

239mm

Product Length:

487mm

Product Height:

486mm

Product Weight:

9950g

Package Width:

55.8cm

Package Length:

56.8cm

Package Height:

31.6cm

Gross Weight:

12.40Kg

Special Features:

• Pre-installed XENEON EDGE 14.5” LCD TOUCHSCREEN.
• The upgraded FRAME 4000D LCD RS ARGB features a brilliant XENEON EDGE 14.5" LCD.
• 4 x CORSAIR RS120 ARGB PWM Fans pre-installed for powerful cooling.
• Eight LEDs per fan and +5V ARGB motherboard control and for easy lighting.
• New fan mount location on the bottom of the chassis for more cooling options.
• Incredible customization with the FRAME Modular Case System.
• CORSAIR InfiniRail Fan Mounting System delivers unmatched flexibility.
• Dual 360mm radiator support with three mounting locations.
• Supports the latest reverse-connection motherboards.
• Upgraded I/O panel with 3x USB Type-C connections.

Package Contents:

• FRAME 4000D Case
• FRAME 4000 Series Upper Tempered Glass Panel
• FRAME 4000 LCD Mounting Bracket
• XENEON EDGE LCD Panel
• XENEON EDGE LCD Accessories and Wiring
• Case Accessory Box

Keywords:

• Case
• LCD
• LED
• Touchscreen
