Product Name:

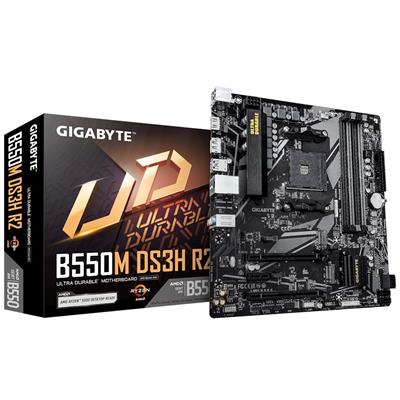

Gigabyte B550M DS3H R2 (Socket AM4/B550/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B550M DS3H R2

EAN:

4719331870454

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/B550M-DS3H-R2/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4733 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 3.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

On-Board Audio:

Realtek ALC1220 CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26cm

Package Length:

26cm

Package Height:

5.40cm

Net Weight:

0.87Kg

Gross Weight:

0.90Kg

Special Features:

• AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors.
• Digital 5+3 phases VRM solution.
• Dual Channel DDR4: 4 x DIMMs.
• EZ-Latch: PCIe slots with Quick Release Design.
• Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1.
• Efficient Thermal: VRM Thermal Armor Advanced.
• Fast Networking: GbE LAN.
• Extended Connectivity: HDMI, Displayport.
• PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card and Better Heat dissipation effect.

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• IO Shield
• 2 x SATA cables
