Product Name:

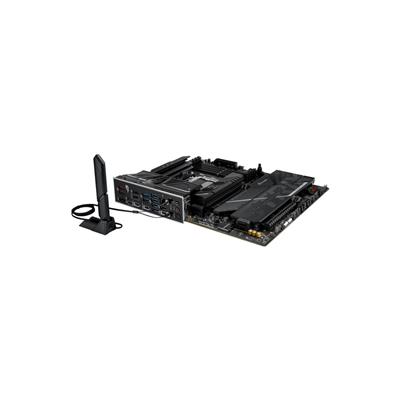

ASUS ROG STRIX X870E-H GAMING WIFI7 (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX X870E-H GAMING WIFI7

EAN:

4711636167208

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-x870e-h-gaming-wifi7/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 5.0 x4

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC1220P 7.1 Surround Sound
• High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB4 Port(s) Type-C:

2

Back USB 5Gbps Port(s) Type-A:

6

Back USB 10Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable RGB Gen 2 headers
• 1 x Thermal Sensor header

Internal Button(s):

1 x Start

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.3cm

Package Length:

35.3cm

Package Height:

6.8cm

Net Weight:

1.87Kg

Gross Weight:

2.54Kg

Special Features:

Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4 Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubber
• 1 x Quick start guide
