Product Name:

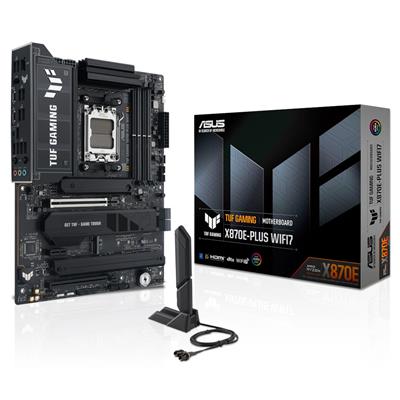

ASUS TUF GAMING X870E-PLUS WIFI7 (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING X870E-PLUS WIFI7

EAN:

4711636100342

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-x870e-plus-wifi7/helpdesk_qvl_cpu?model2Name=TUF-GAMING-X870E-PLUS-WIFI7

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000+ (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Bluetooth:

v5.4

On-Board Audio:

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB4 Port(s) Type-C:

2

Back USB 5Gbps Port(s) Type-A:

4

Back USB 10Gbps Port(s) Type-A:

3

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Thermal Sensor

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.30cm

Package Length:

35.30cm

Package Height:

6.80cm

Net Weight:

2.13Kg

Gross Weight:

2.42Kg

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF GAMING sticker
• 1 x Quick start guide
