Product Name:

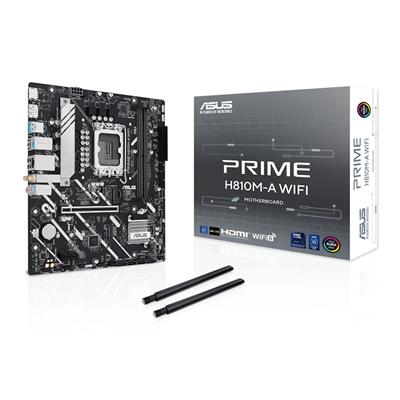

ASUS PRIME H810M-A WIFI (Socket 1851/H810/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME H810M-A WIFI

EAN:

4711387842522

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel H810

CPU Interface:

Socket 1851

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-h810m-a-wifi/helpdesk_download?model2Name=PRIME-H810M-A-WIFI

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Intel 1Gb Ethernet port
• ASUS LANGuard

Wireless NIC:

"Wi-Fi 6

Wireless Technology:

• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 10Gbps Port(s) Type-A:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Form Factor:

Micro ATX

Product Width:

222mm

Product Length:

244mm

Package Width:

26cm

Package Length:

27cm

Package Height:

5.15cm

Net Weight:

0.65Kg

Gross Weight:

1.06Kg

Special Features:

• ASUS 5X PROTECTION III
• ASUS Q-Design
• ASUS Thermal Solution
• Aura Sync

Package Contents:

• Motherboard
• 2 x SATA Cables
• 1 x ASUS Wi-Fi Moving Anrennas
• 1 x I/O Shield
• 1 x Screw Package
• 1 x Quick Start Guide

Keywords:

• Motherboard
• 1851
• DDR5
• WiFi
• Bluetooth
