Product Name:

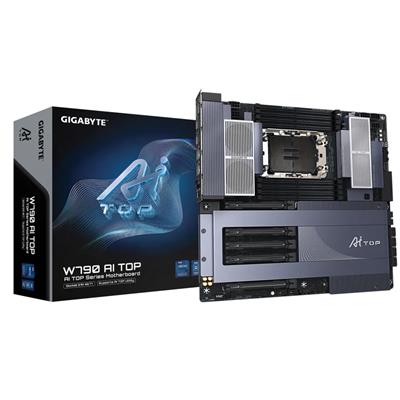

Gigahyte W790 AI TOP-B2 (Socket 4677/W790 Express/DDR5/S-ATA 6Gb/s/Extended ATX)

Web Address:

www.gigabyte.com

Model Number:

W790 AI TOP-2B

EAN:

4719331869960

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 512 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel W790 Express

CPU Interface:

Socket 4677

CPU Support:

https://www.gigabyte.com/Motherboard/W790-AI-TOP/support#support-dl

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

8 x 288-pin

RAM Speeds:

Up to DDR5 4800

PCI Express 5.0 x16:

5

S-ATA 6Gb/s Port(s):

8

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 4 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 5.0 x4

LAN Speed:

Intel X710-AT2 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Intel Wi-Fi 7 BE200NGW

Wireless Technology:

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.4

On-Board Audio:

• ?Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back Thunderbolt 4 Port(s):

2

Back DisplayPort(s) In:

2

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

2 x Antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

4

6-pin ATX Power:

11

PCIe Power Connector(s):

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2x2:

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

• ?1 x Power
• 1 x Reset
• 1 x Q-Flash Plus

Form Factor:

Extended ATX

Product Width:

305mm

Product Length:

330mm

Package Width:

36.5cm

Package Length:

38.5cm

Package Height:

9.5cm

Net Weight:

4.87Kg

Gross Weight:

5.70Kg

Special Features:

• Training your own AI on your desk.
• Support 5th Gen Intel Xeon W processors.
• Digital twin 16+2+2 phases VRM solution.
• Ultimate Scalibility: 5 x PCIe 5.0 x16 slots for multi-GPU and 6 x PCIe 5.0/4.0 M.2 slots.
• Next-gen Connectivity: Dual Thunderbolt 4 Type-C with DP-Alt.
• Blazing Fast Networks: Dual Sever-grade 10GbE LAN and Wi-Fi 7 and directional Ultra-high gain antenna.
• 8 Channel DDR5: 8 x SMD ECC R-DIMMs with Maximum 2TB capacity.
• Reinforced Overall Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard Ext.
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
• PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design.
• Friendly UI: AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.

Package Contents:

• W790 AI TOP motherboard
• Manual
• Quick Installation Guide
• 1 x Antenna
• 4 x SATA cables
• 2 x Thermistor cables
• 1 x Velcro cable tie
• 2 x DisplayPort in cables
• 2 x CPU carriers
• 1 x Dual 24-pin ATX power supply adapter cable
