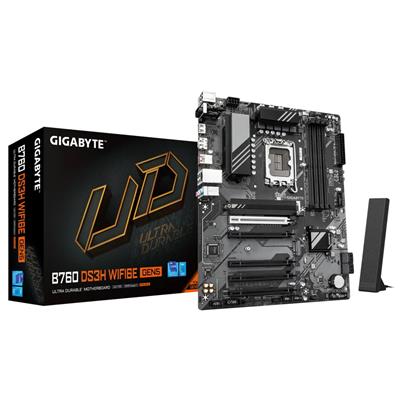

GIGABYTE 1700 B760 DS3H WF6E GEN5
SKU: 127489

GIGABYTE 1700 B760 DS3H WF6E GEN5



Product Group:

Motherboards

Manufacturer:

GIGABYTE

SKU:

127489

Product Specifications

Product Name:

Gigabyte B760 DS3H WF6E GEN5 (Socket 1700/B760/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B760 DS3H WF6E GEN5

EAN:

4719331872939

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/B760-DS3H-WIFI6E-GEN5/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

4

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Wireless NIC:

Intel Wi-Fi 6E AX210

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x Antenna Connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen2 LED strip headers1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus1 x Reset

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

33.5cm

Package Height:

8cm

Net Weight:

1.31Kg

Gross Weight:

1.60Kg

Special Features:

PCIe Gen5 Performance: Perfect Sync to Win.Supports Intel Core 14th/ 13th /12th processors.WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.Unparalleled Performance: Hybrid 8+2+1 Phases VRM Solution.Dual Channel DDR5: 4 x DIMMs XMP Memory Module Support.Fast Networks: GbE LAN and Wi-Fi 802.11ax.Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.Extended Connectivity: Rear USB-C 20Gb/s, DP, HDMI.Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Package Contents:

MotherboardManual1 x Antenna2 x SATA cablesM.2 screwsI/O ShieldOne pack of M.2 thick/thin rubber pads

Keywords:

Motherboard1700B760.DDR5Wi-Fi 6E
