Product Name:

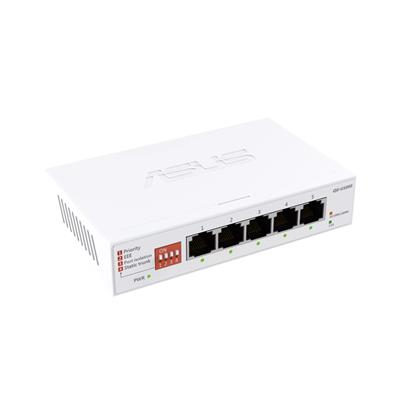

ASUS 5-Port 2.5G Unmanaged Switch QG-U1050

Web Address:

www.asus.com

Model Number:

QG-U1050

EAN:

4711387868522

Package Type:

Retail

Warranty:

3 Years

Device Type:

Unmanaged Switch

Ports:

5 x 2.5G ports

Standards:

• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3bz 2.5G BASE-T
• IEEE 802.3az EEE
• IEEE 802.3x Flow control

Network Architecture Types:

Infrastructure

LED indicators:

• Power LED
• On: The switch is powered on.
• Off: The switch is powered off or the power supply is abnormal.
• Blinking: Loop detected.
• Port LED (Link/ACT)
• Off: Devices are disconnected, or the link has failed.
• Green On: 2.5Gbps connection
• Amber On: 10/100/1000Mbps connection
• Blinking: Devices are connected, and data is transmitting or receiving. When a loop is detected, the port LED blinks rapidly.

Input Power:

• External Power Adapter
• Output: 12V/1A

Operating Temperature:

Operating Temperature: 0 - 40?

Product Width:

121mm

Product Length:

75mm

Product Height:

26mm

Package Width:

9cm

Package Length:

13.6cm

Package Height:

8.5cm

Net Weight:

0.24Kg

Gross Weight:

0.43Kg

Special Features:

• Upgraded 2.5G ports - Seamlessly upgrade to 2.5G by using standard CAT5e Ethernet cables to enjoy faster network performance.
• Support four intelligent functions - priority, EEE, port isolation, and static trunk. One switch is all you need to safeguard and optimize your home or business network.
• Plug and Play, Effortless Setup - Setting up your network has never been easier! Simply connect your devices, and you’re good to go - no complicated configurations required.
• Versatile Networking Expansion - You can connect 2.5G-compatible devices, including NAS, AP, Gaming PCs, and 4K streaming devices to achieve a more comprehensive network setup.

Package Contents:

• ASUS QG-U1050 Switch
• Power Adapter
• Quick Start Guide
• Warranty Card

Keywords:

• Switch
• 5-Port
• 2.5G
