Product Name:

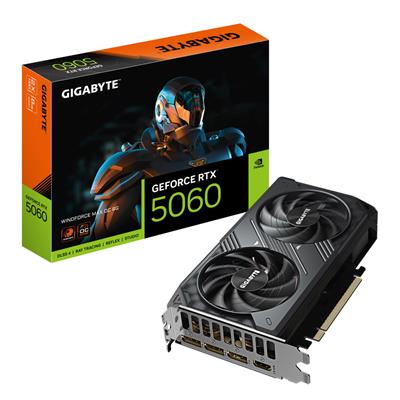

Gigabyte GeForce RTX 5060 Windforce Max OC (8GB GDDR7/PCI Express 5.0/2512MHz/28000MHz)

Web Address:

www.gigabyte.com

Model Number:

GV-N5060WF2MAX OC-8GD

EAN:

4719331356699

Package Type:

Retail

Warranty:

3 Years

Chipset:

NVIDIA GeForce RTX 5060

Bus Standard:

PCI Express 5.0

Video Memory:

8GB

Memory Type:

GDDR7

Boost Clock:

2512MHz

Memory Clock:

28000MHz

Memory Interface:

128-bit

CUDA Cores:

3840

Max. Resolution:

7680x4320

HDMI 2.1 Port(s):

1

DisplayPort(s) 2.1:

3

Power Connector(s):

1 x 8-pin

Maximum Display Support:

4

DirectX Support:

12.0

OpenGL Support:

4.6

Product Width:

40mm

Product Length:

199mm

Product Height:

116mm

Package Width:

21cm

Package Length:

29cm

Package Height:

5cm

Net Weight:

0.49Kg

Gross Weight:

0.81Kg

Special Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4.
• Powered by GeForce RTX 5060.
• Integrated with 8GB GDDR7 128bit memory interface.
• WINDFORCE cooling system.
• Hawk fan.
• Server-grade Thermal conductive gel.
• Reinforced structure.

Package Contents:

• Graphics Card
• Quick guide

Keywords:

• Graphics Card
• Video Card
• DisplayPort
• HDMI
