Product Name:

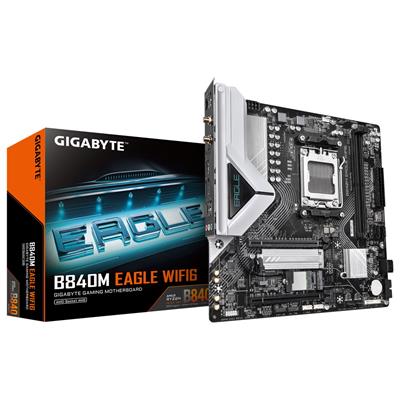

Gigabyte B840M EAGLE WIFI6 (Socket AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B840M EAGLE WIFI6

EAN:

4719331868970

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B840M-EAGLE-WIFI6-rev-10-11/support#dl

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 4.0 x41 x PCIe Gen 3.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA Antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x Addressable RGB Gen2 LED strip headers1 x RGB LED strip header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.8cm

Package Length:

27cm

Package Height:

6.8cm

Net Weight:

1.23Kg

Gross Weight:

1.30Kg

Special Features:

X3D Turbo Mode: Unleash new era gaming performance.AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors.Digital 5+2+2 phases VRM solution.Dual Channel DDR5: 2 x DIMMs with AMD EXPO Memory Module Support.D5 Bionic Corsa for Infinite Memory Performance.EZ-Latch: PCIe and M.2 slots with Quick Release and Screwless Design.EZ-Latch: M.2 heatsinks with screwless design.Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.Ultra-Fast Storage: 2 x M.2 slots.Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard.Fast Networking: 2.5GbE LAN and Wi-Fi 6.Extended Connectivity: HDMI, Displayport.PCIe UD Slot: PCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect.

Package Contents:

MotherboardManualQuick Installation Guide2 x Antennas2 x SATA cablesOne pack of M.2 thick+ thin rubber pads

Keywords:

MotherboardAM5DDR5Wi-Fi 6Bluetooth
