Product Name:

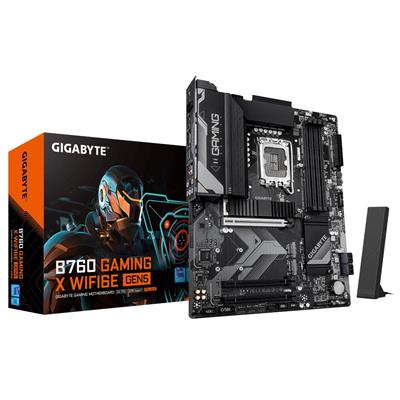

Gigabyte B760 GAMING X WIFI6E GEN5 (Socket 1700/B760 Express/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.gigabyte.com

Model Number:

B760 G X WF6E GEN5

EAN:

4719331871673

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/B760-GAMING-X-WIFI6E-GEN5/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 5600 (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

2

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

3 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless NIC:

Wi-Fi 6E AX210

Wireless Technology:

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Bluetooth:

v5.3

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

5

Back USB 3.2 Port(s) Type-A Gen 1:

1

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Other Port(s):

2 x Antenna connectors (2T2R)

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x Addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

33.50cm

Package Height:

8cm

Net Weight:

1.61Kg

Gross Weight:

1.80Kg

Special Features:

• PCIe Gen5 Performance: Perfect Sync to Win
• Supports Intel Core 14th/13th/12 processors
• Efficient Thermal: VRM Thermal Armor Advanced and M.2 Thermal Guard
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal
• EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
• PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
• Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support
• Fast Networks: 2.5GbE LAN and Wi-Fi 6E 802.11ax
• Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
• Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Package Contents:

• Motherboard
• Manual
• 1 x Antenna
• 2 x SATA cables
• M.2 screws
• One pack of M.2 thick/thin rubber pads
