Product Name:

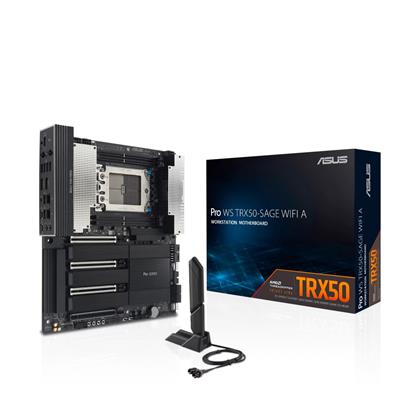

ASUS Pro WS TRX50-SAGE WIFI A (Socket sTR5/TRX50/DDR5 ECC Registered/S-ATA 6Gb/s/CEB)

Web Address:

www.asus.com

Model Number:

PRO WS TRX50-SAGE WIFI A

EAN:

4711387402726

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD TRX50

CPU Interface:

Socket sTR5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-trx50-sage-wifi-a/helpdesk_qvl_cpu?model2Name=Pro-WS-TRX50-SAGE-WIFI-A

RAM Technology:

DDR5 (Quad Channel) ECC Registered

RAM Slots:

4 x 288-pin

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

3

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

SAS Port(s):

2 x SlimSAS

M.2 Socket(s):

• 3 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Marvell AQtion 10Gb Ethernet
• 1 x Intel I226-LM 2.5Gb Ethernet

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth

Bluetooth:

v5.4

On-Board Audio:

• Realtek ALC1220P Surround Sound High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

Back USB 2.0 Port(s):

1

Back USB4 Port(s) Type-C:

2

Back USB 10Gbps Port(s) Type-A:

6

Back DisplayPort(s) In:

1

Back LAN Port(s):

2

Back Audio Jack(s):

2

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

4-pin ATX Power:

1

PCIe Power Connector(s):

• 2 x 8-pin PCIe
• 1 x 6-pin PCIe
• 1 x 8-pin PCIe

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

1

USB 20Gbps Header(s):

1

COM Port Header(s):

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Addressable RGB Gen 2 header
• 1 x BMC header
• 1 x Thermal Sensor header
• 7 x ProbeIt Measurement Points

Internal Button(s):

• 1 x FlexKey
• 1 x Start
• 1 x Safe boot
• 1 x ReTry

Form Factor:

CEB

Product Width:

280mm

Product Length:

305mm

Package Width:

32cm

Package Length:

38cm

Package Height:

10cm

Net Weight:

2.45Kg

Gross Weight:

3.60Kg

Special Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen Threadripper PRO 9000 and 7000 WX-Series and Ryzen Threadripper 9000 and 7000 Series Processors.
• CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust Power and Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
• Ultrafast Connectivity: Three PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb and 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C ports, and SlimSAS NVMe support.
• Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermistor cable pack
• 1 x DisplayPort cable
• 1 x 4pin to 24-pin ATX power connector
• 1 x ASUS WiFi Q-Antenna
• 2 x M.2 Q-Latch package(2 in 1)
• 2 x M.2 Q-Slide package
• 2 x M.2 Rubber Packages
• 1 x Fan bracket
• 1 x Q-connector
• 1 x ACC Express Activation Key Card
• 1 x QSG
