Product Name:

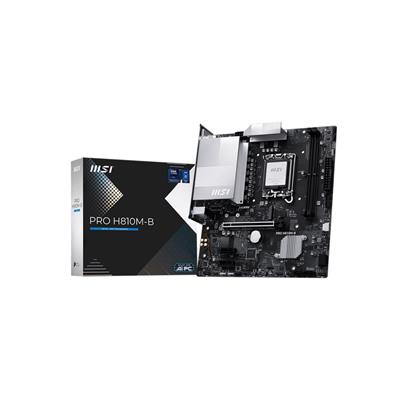

MSI PRO H810M-B (Socket 1851/H810/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO H810M-B

EAN:

4711377337977

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel H810

CPU Interface:

Socket 1851

CPU Support:

https://www.msi.com/Motherboard/PRO-H810M-B/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

1

PCI Express 4.0 x1:

2

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8125 2.5Gbps LAN

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

2

USB 10Gbps Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 4 x EZ Debug LED
• 1 x EZ Memory Detection LED
• 1 x Tuning Controller connector
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Micro ATX

Product Width:

220mm

Product Length:

243.84mm

Special Features:

• Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
• Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX).
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience.
• EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II.
• Lightning-Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2.
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ M.2 Clip II Remover
• 1 x EZ M.2 Clip II
• SATA Cable
