Product Name:

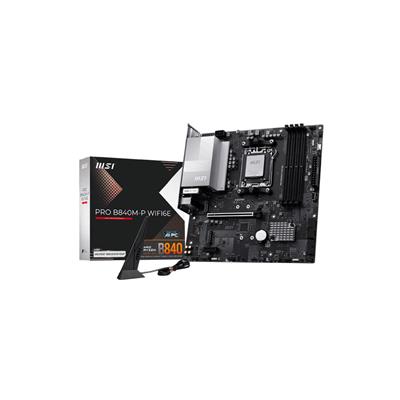

MSI PRO B840M-P WIFI6E (Socket AM5/B840/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

PRO B840M-P WIFI6E

EAN:

4711377361804

UPC:

824142431597

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B840

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/PRO-B840M-P-WIFI6E/support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000MT/s (O.C.)

Max. Memory Support:

256GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 8125D 2.5G LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot.
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps.
• Supports 802.11 a/b/g/n/ac/ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 5Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-A:

1

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS

Internal I/O Connectors:

Wi-Fi / Bluetooth

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 5Gbps Header(s):

3

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller connector(
• 3 x Addressable V2 RGB LED connector
• 1 x RGB LED connector
• 4 x EZ Debug LED
• 1 x EZ Memory Detection LED

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

27.5cm

Package Length:

28.5cm

Package Height:

7cm

Gross Weight:

1.23Kg

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ M.2 Clip II Remover
• 2 x EZ M.2 Clip II
• EZ Wi-Fi Antenna
• SATA Cables
