Product Name:

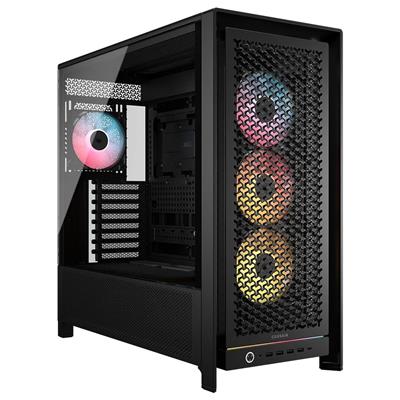

+NEW+Corsair Frame 5000D RS ARGB Mid Tower Case - Black

Web Address:

www.corsair.com

Model Number:

CC-9011309-WW

UPC:

840440491293

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

Steel

Side Panel:

Tempered Glass

Front USB 3.2 Gen 2 Port(s) Type-A:

4

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

8

Motherboard Support:

Mini ITX / Micro ATX / ATX / E-ATX

Drive Bays Internal 3.5":

2

Drive Bays Internal 2.5":

6

PSU Support:

ATX

Pre-installed Fan(s) Front:

3 x 140mm (ARGB)

Pre-installed Fan(s) Rear:

1 x 140mm (ARGB)

Radiator Support:

• Front: 240mm / 280mm / 360mm
• Top: 240mm / 280mm / 360mm / 420mm
• Rear: 120mm / 140mm
• Side: 240mm / 280mm / 360mm

Fan Support:

• 4 x 120mm
• 3 x 120mm / 140mm / 2x 200mm
• 7 x 120mm / 7x 140mm

Clearances:

• Max CPU Cooler Height 175mm
• Max GPU Card Length 450mm
• Max PSU Length 250mm

Dust Filter(s):

• Bottom
• Front
• Side

Product Width:

250mm

Product Length:

542mm

Product Height:

556mm

Product Weight:

12700g

Special Features:

Build the high-airflow, low-temperature PC of your dreams in the CORSAIR FRAME 5000D highairflow case, featuring the innovative FRAME Modular Case System offering unprecedented flexibility to perfectly customize your build as you want it. The InfiniRail Mounting System simplifies fan installation, while support for up to a 420mm radiators and a new 3D Y-Pattern Airflow front panel ensure cool air is directed precisely where it’s needed most. The increased width and length ensure compatibility with the most powerful graphics cards and cooling options, with support for reverse connection motherboards future-proofing your system. We provide the frame. You create the art.

Package Contents:

• Case
• Accessory Kit
• Quick Start Guide
