Product Name:

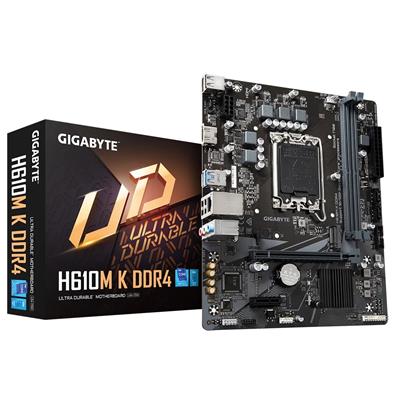

Gigabyte H610M K DDR4 (Socket 1700/H610/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

H610M K DDR4 V2

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel H610 Express

CPU Interface:

Socket 1700

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 3200

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

2

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps)

On-Board Audio:

Realtek Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

185mm

Product Length:

226mm

Package Width:

24cm

Package Length:

27cm

Package Height:

5.5cm

Gross Weight:

0.64Kg

Special Features:

Supports 13th/12th Gen Intel Core Series Processors.Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.GbE LAN with Bandwidth Management.NVMe PCIe 3.0 x4 M.2.High Quality Audio Capacitors and Audio Noise Guard.Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.GIGABYTE APP Centre, Simple and Easy Use.Anti-Sulphur Resistors Design.

Package Contents:

MotherboardManual1 x SATA cableIO Shield

Keywords:

Motherboard1700H610DDR4M-ATXMicro ATX
