Product Name:

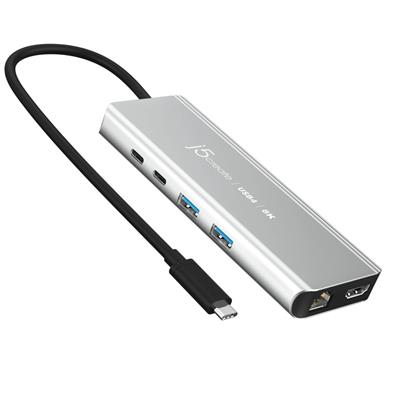

J5Create USB4 8K Multi-Port Hub

Web Address:

en.j5create.com

Model Number:

JCD403-N

EAN:

4712795086614

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Space Grey

Hardware:

• Host Connector: 1 x USB4 Male
• Video Output: 1 x HDMI Female
• Power Source: Bus-powered or self-powered
• Network Interface: Yes
• Audio Supported: Yes
• Ports:
• 1 x USB-C 3.2 Gen2 10Gbps data transmission
• 1 x USB-C power delivery 3.0 100W
• 2 x USB Type-A 3.2 Gen2 10Gbps data transmission
• 1 x 8K HDMI
• 1 x RJ45 2.5 Gigabit Ethernet

Performance:

• Maximum Display Resolution: 7680 x 4320
• Maximum Display Refresh Rate: 60 Hz at 3840 x 2160 / 144 Hz at 3840 x 2160 (Only for DSC host) / 30 Hz at 7680 x 4320 / 60 Hz at 7680 x 4320 (Only for DSC host)
• Maximum Data Transfer Rate: 10Gbps
• Displays Supported: HDMI
• Compatible Networks: 10M/100M/1000M/2.5 Gigabit
• Audio Channel: 1 x 2.1 via HDMI

Power:

• Power Delivery: Up to 100W via USB-C
• Power Consumption: = 900 mA
• Input Current: Up to 5A
• Input Voltage: Up to 20V
• Output Current: Up to 4.75A
• Output Voltage: Up to 20V

Cable Length:

200mm

Temperature:

• Operating: -1 to 41°C
• Storage: -17 to 68°C)

Humidity:

< 85% non-condensing

Product Width:

51mm

Product Length:

15mm

Product Height:

135mm

Product Weight:

109g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.25cm

Gross Weight:

0.17Kg

Special Features:

• Supports resolutions up to 8K.
• Compatible with Thunderbolt 4, Thunderbolt 3 or other USB-C host laptops.
• Thunderbolt 4, USB4 is required to achieve 8K resolutions.
• Also supports other USB 3.2 host laptops and lower resolution monitors/displays.
• One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection.
• Two SuperSpeed+ USB Type-A 10Gbps port to accommodate your legacy peripheral.
• One USB-C downstream port supports up to 10Gbps data transmission.
• Power Delivery 3.0 offers up to 100W of pass-through charging.
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance.
• Wide compatibility with various operating systems and devices.
• Plug-and-play, no driver installation required.

Package Contents:

• 1 x JCD403 USB4 8K Multi-Port Hub
• 1 x Quick Installation Guide (QIG)

Keywords:

• USB4
• 8K
• Multi-Port
• Hub
