Product Name:

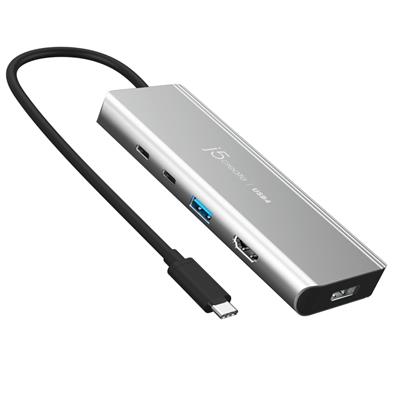

J5Create USB4 Dual 4K Multi-Port Hub

Web Address:

en.j5create.com

Model Number:

JCD401-N

EAN:

4712795086348

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Space Grey

Hardware:

• Audio Supported: No
• Host Connector: 1 x USB4 Male
• Network Interface: No
• Ports:
• 1 x USB-C 3.2 Gen 2 (10Gbps) with DP 1.2 Support
• 1 x USB Type-A 3.2 Gen 2 (10Gbps)
• 1 x USB-C Power Delivery 3.0
• 1 x 4K HDMI
• 1 x DisplayPort 1.2
• Power Source: Bus-powered or self-powered
• Video Output:
• 1 x HDMI Female
• 1 x DisplayPort Female
• 1 x USB-C with DisplayPort alt mode

Performance:

• Displays Supported: 2
• Max Data Transfer Rate: 10Gbps
• Max Display Refresh Rate: 60Hz
• Max Display Resolution: 3840 x 2160

Power:

• Input Current: Up to 3A
• Input Voltage: Up to 20V
• Output Current: Up to 4.25A
• Output Voltage: Up to 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 85W via USB-C

Cable Length:

200mm

Temperature:

• Operating: -1 to 41°C
• Storage:-17 to 68°C

Humidity:

< 85% non-condensing

Product Width:

51mm

Product Length:

15mm

Product Height:

135mm

Product Weight:

109g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.25cm

Gross Weight:

0.17Kg

Special Features:

• Intel USB4 controller ensures industry-leading quality and reliability.
• Up to two 4K displays with flexible monitor connections:
• 1 x DisplayPort + 1 HDMI
• 1 x USB-C + 1 DisplayPort
• 1 x USB-C + 1 HDMI
• Multiple data and display protocols efficiently share bandwidth to offer optimal performance.
• One USB-C downstream port supports up to 10Gbps data transmission and DP 1.2 support for 4K at 60Hz video output.
• One SuperSpeed+ USB Type-A 10Gbps port to accommodate your legacy peripherals.
• Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C power adapter.
• Wide compatibility with various operating systems and devices.
• Plug-and-play, no driver installation required.

Package Contents:

• 1 x JCD401 USB4 Dual 4K Multi-Port Hub
• 1 x Quick Installation Guide (QIG)

Keywords:

• Multi-Port
• Hub
• USB4
• Dual 4K
