Product Name:

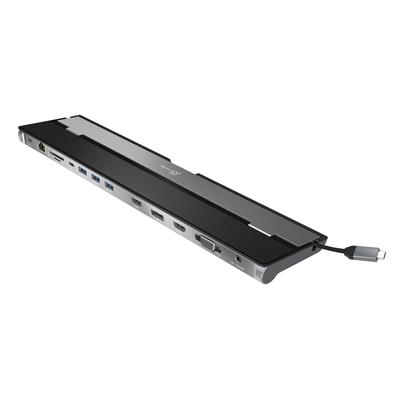

J5Create USB-C Triple Display Docking Station

Web Address:

en.j5create.com

Model Number:

JCD543-N

EAN:

4712795083613

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Silver and Black

Hardware:

• Audio Supported: Yes
• Host Connector: USB-C Male
• Network Interface: RJ45 (Gigabit Ethernet)
• Ports
• 2 x USB 3.0 Type-A
• 1 x USB 3.0 Type-A fast charge
• 1 x USB-C 3.1 Gen 1
• 1 x USB-C Power Delivery 3.0
• 2 x 4K HDMI
• 1 x DisplayPort
• 1 x VGA
• 1 x SD and microSD memory card reader/writer
• 1 x RJ45 Gigabit Ethernet
• 1 x 3.5 mm combo audio jack
• Power Source: Bus-powered or Self-powered
• Video Output:
• 2 x HDMI Female
• 1 x DisplayPort Female
• 1 x VGA Female

Performance:

• Audio Channel: 2.1 via HDMI/DisplayPort/3.5 mm Aux
• Compatible Networks: 10/100/1000 Mbps
• Displays Supported: 3 (HDMI, VGA and DisplayPort or HDMI)
• Max Data Transfer Rate: 5 Gbps
• Max Display Refresh Rate: HDMI/DisplayPort 4K: 30 Hz / HDMI™/DisplayPort 1080p: 60 Hz / VGA: 60 Hz
• Max Display Resolution: HDMI/DisplayPort: 3840 x 2160 / VGA: 1920 x 1080

Power:

• Input Current: 5A
• Input Voltage: 20V
• Output Current: 5A
• Output Voltage: 20V
• Power Consumption: = 900 mA
• Power Delivery: Up to 100W via USB-C

Cable Length:

45cm

Temperature:

• Operating: 0 to 48°C
• Storage: -10 to 65°C

Humidity:

Operating: < 85% non-condensing

Product Width:

82.5mm

Product Length:

350mm

Product Height:

23.37mm

Product Weight:

300g

Package Width:

8.83cm

Package Length:

35.8cm

Package Height:

2.8cm

Gross Weight:

0.43Kg

Special Features:

• Simultaneous DisplayPort, HDMI and VGA Output.
• Maximum Resolutions Supported in Extended Mode.
• Maximum Resolutions Supported in Mirror Mode.
• SD/microSD Card Reader.
• SuperSpeed USB 3.0 Ports.
• 13 ports in one sleek design for all your needs.

Package Contents:

• 1 x JCD543 USB-C Triple Display Docking Station
• 1 x Quick Installation Guide
