Product Name:

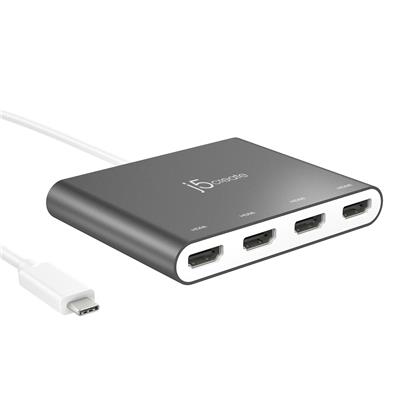

J5Create USB-C to 4 Port HDMI Multi Monitor Adapter

Web Address:

en.j5create.com

Model Number:

JCA366-N

EAN:

4712795083934

Package Type:

Retail

Warranty:

2 Years

Enclosure Type:

Aluminium

Colour:

Silver

Hardware:

• Audio supported: Yes
• Host Connector: 1 x USB-C 3.1 Male
• Ports: 4 x 1080p HDM
• Power Source: Bus-powered
• Video Output: 4 x HDMI Female

Performance:

• Audio Channel: 2.1 via HDMI
• Displays Supported: 4
• Max Display Refresh Rate: 60Hz
• Max Display Resolution: 1920 x 1080
• Supported Resolution – output
• Wide Screen Display
• 16:9 - 1920 x 1080 / 1600 x 900 / 1366 x 768 / 1280 x 720
• 16:10 - 1680 x 1050 / 1440 x 900 / 1280 x 720
• 15:9 - 1280 x 768
• Standard Display
• 4:3 - 1600 x 1200 / 1400 x 1050 / 1280 x 960 / 1152 x 684 / 1024 x 768 / 800 x 600 / 640 x 480
• 5:4- 1280 x 1024

Power:

Consumption: ? 900mA

Cable Length:

50cm

Temperature:

• Operating: 0 to 45°C
• Storage: -10 to 71°C

Humidity:

< 85% non-condensing

Product Width:

101.5mm

Product Length:

16mm

Product Height:

79.5mm

Product Weight:

158g

Package Width:

12.5cm

Package Length:

19.3cm

Package Height:

2.25cm

Gross Weight:

0.21Kg

Special Features:

• Drag and Drop: Drag a task window to show the control panel and then drop the window on any block to switch and display it onto the corresponding monitor.
• Optional Zooming: Drag a window, hover over the desired monitor numbers and press "CTRL" to spread the image across the selected displays.
• Cursor Display Cycle: Shows a circular spot for guiding the user to find the mouse cursor quickly in multiple extended monitors by shifting it across the displays in order.
• Cascading Windows to the Main Display: Recall all the windows in the extended monitor back to the main host monitor.
• Windows Expansion Cycle: Move the latest program window in turns to zoom in on each extended monitor.
• View Display Settings: Open the Display Settings app to view and change display settings in Windows.
• Disable Screen Mapping: Disable to hide the drag and drop UI, reducing errors during use.

Package Contents:

• 1 x JCA366 USB-C to 4-Port HDMI Multi-Monitor Adapter
• 1 x Quick Installation Guide

Keywords:

• HDMI
• Multi-Monitor
• Adapter
