Product Name:

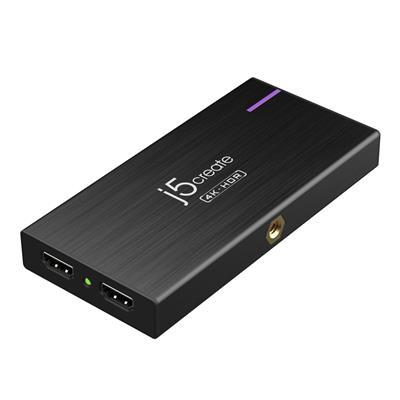

J5Create 4K Game Capture Station

Web Address:

en.j5create.com

Model Number:

JVA14-N

EAN:

4712795086461

Package Type:

Retail

Warranty:

2 Years

Colour:

Black

Enclosure:

Aluminium

Host Connector:

1 x USB-C 3.2 Female

Ports:

• 1 x USB-C 3.2 Gen 1
• 1 x HDMI Input
• 1 x HDMI Output
• 1 x Audio Out (3.5 mm)
• 1 x Mic In (3.5 mm)

Audio Input:

1 x 3.5mm AUX

Audio Output:

1 x 3.5mm AUX

Video Input:

1 x HDMI Female

Video Output:

1 x HDMI Female

Power Source:

Bus-powered

Audio Channel:

2.1 via HDMI

Audio Frequency:

48kHz

Format:

• USB 3.0: RGB / YUV4:2:2 / YUV4:2:0
• USB 2.0: YUV4:2:0

Headset:

2.1 Stereo

Microphone:

• Stereo microphone supported
• 24-bit sigma-delta ADC

Max Capture:

• Capability: USB 3.0: 3840 x 2160 at 30 / USB 2.0: 1280 x 720 at 30
• Refresh Rate: 4K30 FPS, 2K60 FPS, 1080p 120FPS
• Resolution: 3840 x 2160

Max Passthrough:

• Resolution: 3840 x 2160 max
• Refresh Rate: 4K60 Hz HDR, 2K144 Hz HDR, 1080p240 Hz HDR

Power:

• Consumption: =900 mA
• Delivery: 60W via USB-C

Cable Length:

1m

Humidity:

<85% non-condensing

Temperature:

• Operating: 0 to 40°C
• Temperature: -10 to 65°C

Product Width:

134.6mm

Product Length:

18.4mm

Product Height:

63.7mm

Product Weight:

142.5g

Package Width:

7.5cm

Package Length:

15.5cm

Package Height:

7cm

Gross Weight:

0.37Kg

Special Features:

• Uncompressed 4K at 30 Capture + 4K@60 Loop Out.
• 4K60 pass-through support (Uncompressed).
• Power Only: Orange.
• No driver installation required.
• HDR Passthrough: Supports resolutions up to 4K at 60Hz, 1440p at 144Hz, and 1080p at 240Hz.
• Ultra-low latency stream with high-performance USB-C 3.2 connection.
• LED indicator to keep track of USB speeds and compression rates.
• USB 3.0 connection: Purple (Uncompressed).
• USB 2.0 connection: Blue (Uncompressed).

Package Contents:

• 1 x JVA14 4K Game Capture Station
• 1 x USB-C 3.0 to USB Type-A cable 60cm
• 1 x USB-C 3.0 to USB-C cable 60cm
• 1 x HDMI 2.0 cable 1m
• 1 x Quick Installation Guide (QIG)
