Product Name:

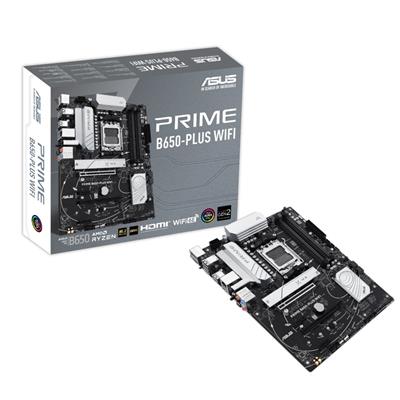

ASUS PRIME B650-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

PRIME B650-PLUS WIFI

EAN:

4711387760895

UPC:

197105760899

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b650-plus-wifi/helpdesk_qvl_cpu?model2Name=PRIME-B650-PLUS-WIFI

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600+ (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

2

PCI Express 4.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed:

1 x Realtek 2.5Gb Ethernet

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back Panel I/O Ports:

1

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34.5cm

Package Height:

7cm

Gross Weight:

1.67Kg

Special Features:

• AMD AM5 Socket: Ready for AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
• Ultrafast Connectivity: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C, front USB 5Gbps Type-C, Thunderbolt 4 header support.
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Wi-Fi moving antenna
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x User guide
