Product Name:

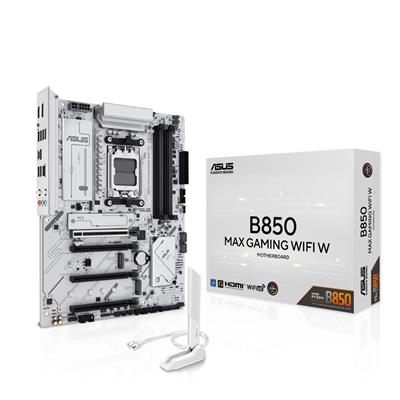

+NEW+ASUS B850 MAX GAMING WIFI W White (Socket AM5/B850/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

B850 MAX GAMING WIFI W

EAN:

4711387981016

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD B850

CPU Interface:

Socket AM5

CPU Support:

https://www.asus.com/motherboards-components/motherboards/others/b850-max-gaming-wifi-w/helpdesk_knowledge?model2Name=B850-MAX-GAMING-WIFI-W

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 8000+MT/s (O.C.)

Max. Memory Support:

256GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

3

Back USB 10Gbps Port(s) Type-C:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

3

USB 5Gbps Header(s):

2

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

3 x Addressable RGB Gen 2 headers

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Special Features:

B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber packages
• 3 x Screw packages for M.2 SSD
• 1 x Quick start guide

Keywords:

• Motherboard
• AM5
• B850
• DDR5
