Product Name:

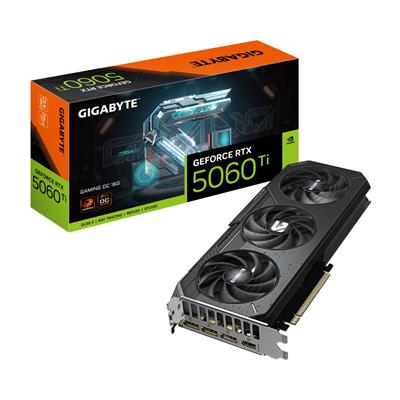

Gigabyte GeForce RTX 5060 Ti Gaming OC (16GB GDDR7/PCI Express 5.0/2647MHz/28000MHz)

Web Address:

www.gigabyte.com

Model Number:

GV-N506TGAMING OC-16GD

EAN:

4719331356026

UPC:

889523049303

Package Type:

Retail

Warranty:

3 Years

Chipset:

NVIDIA GeForce RTX 5060 Ti

Bus Standard:

PCI Express 5.0

Video Memory:

16GB

Memory Type:

GDDR7

Boost Clock:

2647MHz

Memory Clock:

28000MHz

Memory Interface:

128-bit

CUDA Cores:

4608

Max. Resolution:

7680x4320

HDMI 2.1 Port(s):

1

DisplayPort(s) 2.1:

3

Power Connector(s):

1 x 8-pin

Maximum Display Support:

4

DirectX Support:

12.0

OpenGL Support:

4.6

Product Width:

40mm

Product Length:

281mm

Product Height:

119mm

Package Width:

18.7cm

Package Length:

36.5cm

Package Height:

8cm

Gross Weight:

1.15Kg

Special Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4.
• Powered by GeForce RTX 5060 Ti.
• Integrated with 16GB GDDR7 128bit memory interface.
• WINDFORCE cooling system:
• Hawk fan
• Server-grade Thermal conductive gel
• RGB lighting.
• Dual BIOS (Performance / Silent).
• Reinforced structure.

Package Contents:

• Graphics Card
• Quick guide
