Product Name:

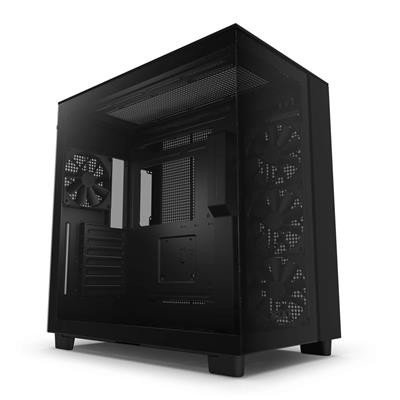

+NEW+NZXT H9 Flow Mid Tower Case Black (ATX/M-ATX/M-ITX)

Web Address:

nzxt.com

Model Number:

CM-H91FB-01

EAN:

5056547202402

Package Type:

Retail

Warranty:

2 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

SGCC Steel

Side Panel:

Tempered Glass

Front USB 3.2 Gen 1 Port(s) Type-A:

2

Front USB 3.2 Gen 2x2 Port(s) Type-C:

1

Front Headphone Jack(s):

1

Expansion Slots:

7

Motherboard Support:

Mini ITX / Micro ATX / ATX

Drive Bays Internal 3.5":

2

Drive Bays Internal 2.5":

4+2

Radiator Support:

• Side: Up to 360mm with Push/Pull
• Top: Up to 360mm
• Bottom: Up to 360mm
• Rear: Up to 120mm

Fan Support:

• Side: 3 x 120mm
• Top: 3 x 120mm / 2 x 140mm
• Bottom: 3 x 120mm / 2 x 140mm
• Rear: 1 x 120mm

Clearances:

• Max CPU Cooler Clearance: Up to 165mm
• Max GPU Clearance: Up to 435mm
• PSU Clearance: 200mm
• Cable Management: 91mm

Dust Filter(s):

All Air Intakes

Product Width:

290mm

Product Length:

466mm

Product Height:

495mm

Product Weight:

12100g

Special Features:

• Unique uninterrupted glass panel for a clear view of the interior.
• Intuitive cable management and dual chamber design.
• Room for ten fans or three 360mm Radiators.
• Perforated top panel for enhanced cooling.
• Direct airflow to the GPU for handling high-powered components.
• Enhanced experience with other products from the NZXT ecosystem.

Package Contents:

• H9 Flow Case
• 4 x 120mm Quiet Airflow Fan (Case Version)
• Installation Accessories
• Manual
