Product Name:

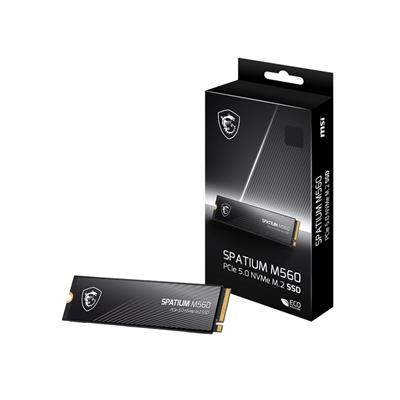

MSI 1TB M.2 Solid State Drive Spatium M560 (PCIe Gen 5.0 x4/NVMe 2.0)

Web Address:

uk.msi.com

Model Number:

SPATIUM M560 PCIE 5.0 NVME M.2 1TB

EAN:

4711377275347

UPC:

824142388365

Package Type:

Retail

Warranty:

Limited 5-year or 600TBW

Series:

Spatium M560

Capacity:

1TB

Interface:

PCIe Gen 5.0 x 4/NVMe 2.0

Controller Chip:

PHISON E31T

Form Factor:

M.2 (2280)

Max. Sequential Read Rate:

10,200MB/s

Max. Sequential Write Rate:

8,400MB/s

Random Read:

4KB: 1,300,000 IOPS

Random Write:

4KB: 1,400,000 IOPS

Temperature Operating:

0°C - 70°C

Temperature Non-operating:

-40°C - 85°C

M.T.B.F.:

1,500,000 hours

Product Width:

22mm

Product Length:

80mm

Product Height:

2.15mm

Package Width:

8

Package Length:

16

Package Height:

2

Gross Weight:

0.40

Special Features:

• TRIM (Performance Optimization, OS support required)
• SMART (Self-Monitoring, Analysis and Reporting Technology)
• LDPC (Low Density Parity Check) ECC Algorithm
• End to End Data Path Protection
• APST (Autonomous Power State Transition)

Package Contents:

SPATIUM M560 PCIe 5.0 NVMe M.2 1TB

Keywords:

• SSD
• PCIe 5.0
• NVMe
• M.2
