Product Name:

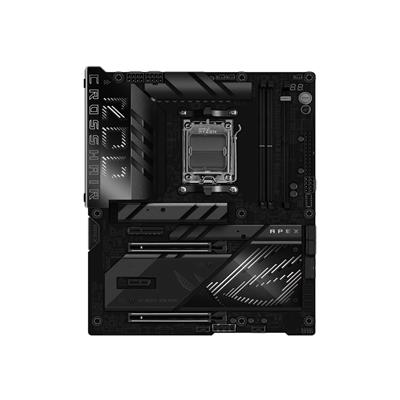

ASUS ROG CROSSHAIR X870E APEX (Socket AM5/X870E/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG CROSSHAIR X870E APEX

EAN:

4711387890240

UPC:

197105890244

Package Type:

Retail

Warranty:

3 Years

BIOS:

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Chipset:

AMD X870E

CPU Interface:

Socket AM5

CPU Support:

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-apex/helpdesk/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 9600+ (O.C.)

Max. Memory Support:

128GB

PCI Express 5.0 x16:

2

PCI Express 4.0 x4:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

LAN Speed:

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 7

Wireless Technology:

• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate

Bluetooth:

v5.4

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB4 Port(s) Type-C:

2

Back USB 5Gbps Port(s) Type-A:

2

Back USB 10Gbps Port(s) Type-A:

5

Back USB 10Gbps Port(s) Type-C:

1

Back LAN Port(s):

1

Back Audio Jack(s):

2

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

• 1 x BIOS FlashBack
• 1 x Clear CMOS

24-pin ATX Power:

1

8-pin ATX Power:

2

PCIe Power Connector(s):

1 x 8-pin

USB 2.0 Header(s):

2

USB 5Gbps Header(s):

2

USB 20Gbps Header(s):

2

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x 80 Light Bar Jumper
• 3 x Addressable Gen2 Headers
• 1 x Alteration PCIe Mode Switch
• 1 x Pause Switch
• 12 x ProbeIt Measurement Points
• 2 x RSVD Switches
• 1 x RSVD_4 Header

Internal Button(s):

• 2 x BCLK
• 1 x BIOS Switch
• 1 x FlexKey
• 1 x ReTry

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

30.5cm

Package Length:

37cm

Package Height:

11cm

Gross Weight:

3.93Kg

Special Features:

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors.
• Intelligent Control: ASUS-exclusive AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance.
• ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement.

Package Contents:

• Motherboard
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 pad for ROG DIMM.2
• 2 x M.2 screw package for ROG DIMM.2
• 1 x ROG Memory Fan Kit
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 3 x M.2 Q-Slide package
• 3 x M.2 rubber package
• 1 x ROG stickers
• 1 x ROG thank you card
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide
