Product Name:

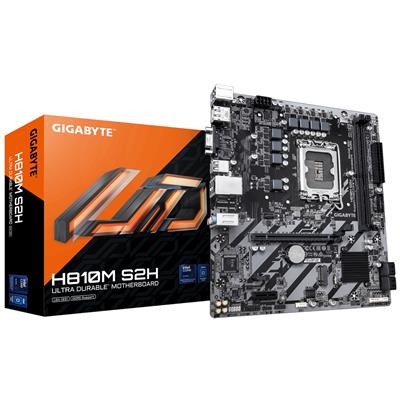

+NEW+Gigabyte H810M S2H (Socket 1851/H810 Express/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

H810M S2H

EAN:

4719331869168

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel H810 Express

CPU Interface:

Socket 1851

CPU Support:

https://www.gigabyte.com/Motherboard/H810M-S2H/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6400

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 4.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

5

Back USB 3.2 Port(s) Type-A Gen 1:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

2 x Addressable RGB Gen2 LED strip headers

Form Factor:

Micro ATX

Product Width:

215mm

Product Length:

244mm

Special Features:

• Supports Intel Core Ultra processors (Series 2).
• Hybrid 4+1+2 phases VRM solution.
• EZ-Latch: PCIe x16 Slot with Quick Release Design.
• Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW.
• Next Generation Storage: PCIe 4.0 x4 M.2 Connectors.
• Fast Networking: GbE LAN.
• Extended Connectivity:: DisplayPort, HDMI.

Package Contents:

• Motherboard
• Manual
• Quick Installation Guide
• 2 x SATA cables
• I/O Shield
