Product Name:

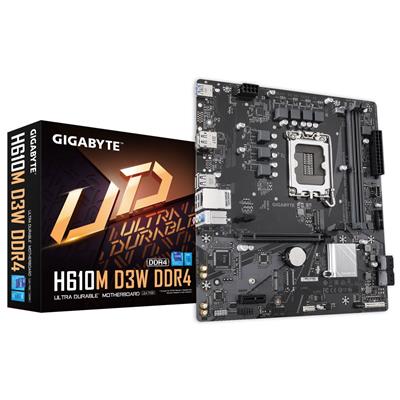

+NEW+Gigabyte H610M D3W DDR4 (Socket 1700/H610 Express/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

H610M D3W DDR4

EAN:

4719331865245

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel H610 Express

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/H610M-D3W-DDR4-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 3200 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x PCIe Gen 3.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.1 Port(s) Type-A Gen 1:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Special Features:

• Supports Intel Core 14th/ 13th/ 12th processors.
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs.
• 5+1+1 Hybrid Digital VRM Design.
• GbE LAN with Bandwidth Management.
• NVMe PCIe 3.0 x4 M.2.
• High Quality Audio Capacitors and Audio Noise Guard.
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• GIGABYTE APP Centre, Simple and Easy Use.
• Anti-Sulphur Resistors Design.

Package Contents:

• Motherboard
• Manual
• 2 x SATA cables
• I/O Shield
