Product Name:

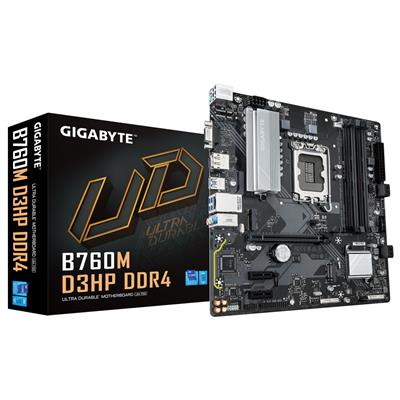

Gigabyte B760M D3HP DDR4 (Socket 1700/B760 Express/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B760M D3HP DDR4

EAN:

4719331862848

UPC:

889523043790

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

Intel B760 Expres

CPU Interface:

Socket 1700

CPU Support:

https://www.gigabyte.com/Motherboard/B760M-D3HP-DDR4/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

1 x Addressable LED strip header1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

26.5cm

Package Height:

5.5cm

Gross Weight:

0.91Kg

Special Features:

Supports Intel Core 14th/13th/12th processors.Unparalleled Performance: Hybrid 4+1+1 Phases Digital VRM Solution.Dual Channel DDR4: 4 x DIMMs XMP Memory Module Support.Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors.Fast Networks: GbE LAN.Extended Connectivity: Front USB-C 5Gb/s, DP, HDMI, D-Sub.Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

MotherboardManualI/O Shield2 x SATA cables

Keywords:

Motherboard1700B760DDR4M-ATXMicro ATX
